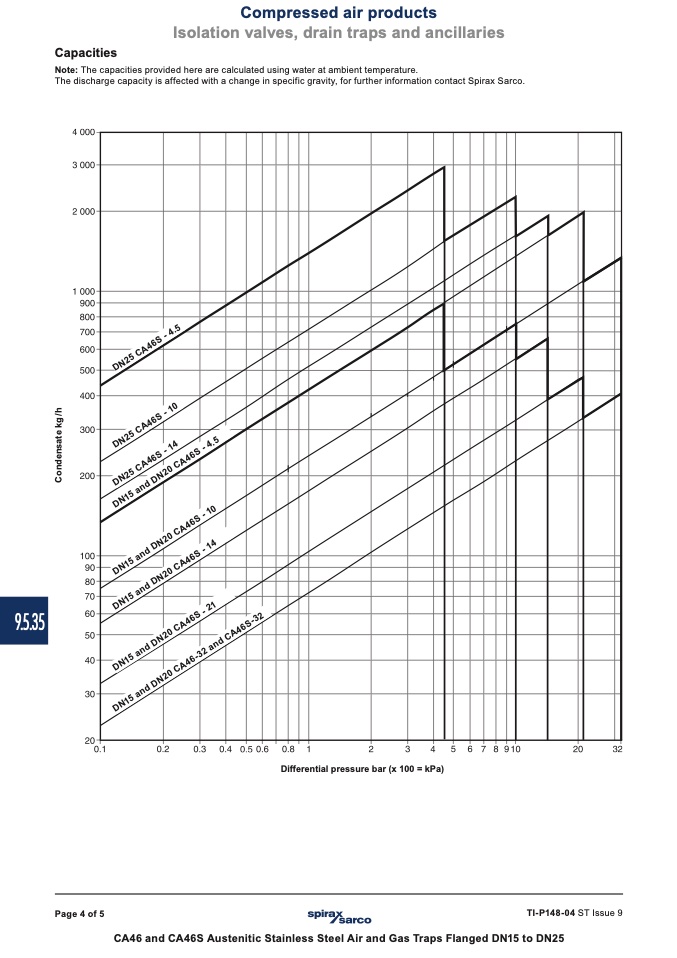

Capacities

Note: The capacities provided here are calculated using water at ambient temperature.

The discharge capacity is affected with a change in specific gravity, for further information contact Spirax Sarco.

Differential pressure bar (x 100 = kPa)

Page 4 of 5

TI-P148-04 ST Issue 9

CA46 and CA46S Austenitic Stainless Steel Air and Gas Traps Flanged DN15 to DN25

C

o

n

d

e

n

s

a

t

e

k

g

/

h

DN25 CA46S - 10

DN25 CA46S - 14

DN15 and DN20 CA46S - 4.5

DN15 and DN20 CA46S - 10

DN15 and DN20 CA46S - 14

DN15 and DN20 CA46S - 21

DN15 and DN20 CA46-32 and CA46S-32

DN25 CA46S - 4.5
