Capacities

1 000

800

600

500

400

300

200

100

80

60

50

Compressed air products

Isolation valves, drain traps and ancillaries

Spare parts

The spare parts available are shown in heavy outline. Parts drawn

in broken line are not supplied as spares.

C

o

n

d

e

n

s

a

t

e

k

g

/

h

40

0.2

5

0.50.71

2

34

5

71

0

20304063

Differential pressure bar (x 100 = kPa)

2

Kv values

Size

Kv

For conversion:

1⁄2"

3.09

Cv (UK) = Kv x 0.963

Cv (US) = Kv x 1.156

3

Dimensions/weight (approximate) in mm and kg

Size

A

B

E

G

H

Weight

1⁄2"

41

78

55

85

41

0.77

Withdrawal distance for cap

H

A

B

E

G

Withdrawal distance for strainer

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-S48-06) supplied with the product.

Preferably fitted in a horizontal plane with the cover at the top but

can be fitted in vertically downwards pipe.

Disposal

The product is recyclable. No ecological hazard is anticipated with

disposal of this product providing due care is taken.

How to order

Example: 1 off Spirax Sarco 1⁄2" BRair compressed air drain trap

having screwed BSP connections.

4

6

9.5.6

Installation note:

5

Recommended tightening torques

Item

or

mm

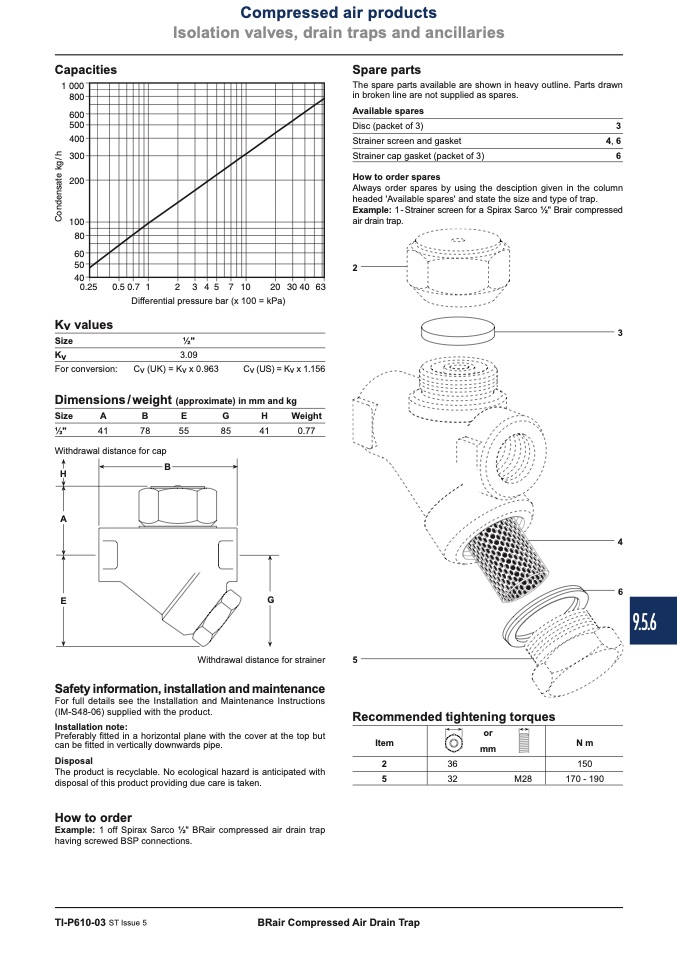

TI-P610-03 ST Issue 5

BRair Compressed Air Drain Trap

Available spares

Disc (packet of 3)

Strainer screen and gasket

Strainer cap gasket (packet of 3)

How to order spares

3

4, 6

6

Always order spares by using the desciption given in the column

headed 'Available spares' and state the size and type of trap.

Example: 1-Strainer screen for a Spirax Sarco 1⁄2" Brair compressed

air drain trap.

N m

2

36

150

5

32

M28

170 - 190
