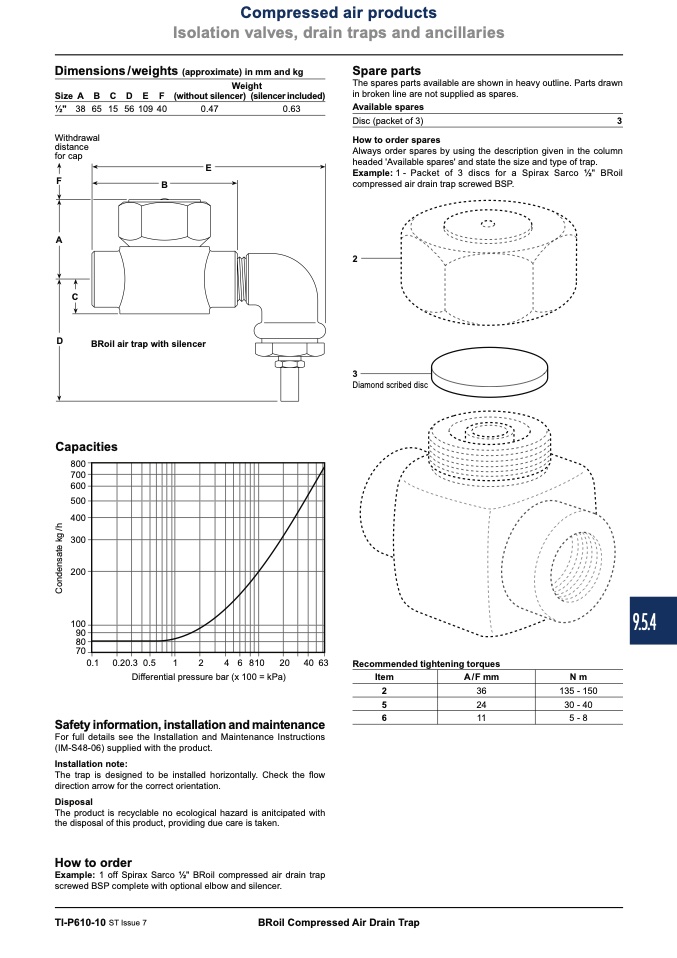

Compressed air products

Isolation valves, drain traps and ancillaries

Dimensions/weights (approximate) in mm and kg

Spare parts

The spares parts available are shown in heavy outline. Parts drawn

in broken line are not supplied as spares.

Available spares

Disc (packet of 3)

3

How to order spares

Always order spares by using the description given in the column

headed 'Available spares' and state the size and type of trap.

Example: 1 - Packet of 3 discs for a Spirax Sarco 1⁄2" BRoil

compressed air drain trap screwed BSP.

Weight

(without silencer) (silencer included)

Size A B C D E F

1⁄2" 38 65 15 5610940

Withdrawal

distance

for cap

F

A

C

D

Capacities

800

700

600

500

400

300

200

100

90

80

70

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-S48-06) supplied with the product.

Installation note:

The trap is designed to be installed horizontally. Check the flow

direction arrow for the correct orientation.

Disposal

The product is recyclable no ecological hazard is anitcipated with

the disposal of this product, providing due care is taken.

How to order

Example: 1 off Spirax Sarco 1⁄2" BRoil compressed air drain trap

screwed BSP complete with optional elbow and silencer.

0.47

0.63

B

E

BRoil air trap with silencer

2

3

Diamond scribed disc

0.1 0.20.3 0.5

Differential pressure bar (x 100 = kPa)

1

2

4

6 810

20 40 63

Recommended tightening torques

Item

2

5

6

A/F mm

36

24

11

N m

135 - 150

30 - 40

5- 8

TI-P610-10 ST Issue 7

BRoil Compressed Air Drain Trap

9.5.4
