Compressed air products

Filters

Monnier air line filters are built to ensure solid and liquid

contaminants are removed from compressed air. All Monnier

filters are engineered with the exclusive Whirl-Away design

which creates high centrifugal force with low pressure drop. The

whirling action forces all liquids and solids against the bowl wall

causing them to run down below the quiet-zone baffle where

they can be drained out. The air then flows through the element

where the smaller particles are removed and the filtered air

passes downstream. The leak proof drain valve has an 'O' ring

seal that can be opened and closed without tools.

Principle of operation

Spare parts

Inlet flow

Outlet flow

Always order spares by using the description given in the column

headed 'Available spares' and state the size and type of unit.

Example: 1 - Polycarbonate bowl assembly for a 1⁄2" IX1M

Monnier international compressed air filter.

Dimensions/weights (approximate) in mm and kg

Polycarbonate bowl

A

B

C

E

E1

Weight

17

152

64

49

73

0.6

Metal bowl

A

B

C

E

E1

Weight

25

170

64

38

-

0.7

C

C

A

B

Withdrawal distance: E, E1

Withdrawal distance: E without bowl guard , E1 with bowl guard

H

D

C

B

A

9.1.12

G

F

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P504-22) supplied with the product.

Installation note:

Fit in a horizontal pipework with the air flow in the direction of the

arrow and the bowl vertically downwards, as close as possible to

the equipment it is protecting.

How to order

Example: 1 off IX1M Monnier international compressed air filter

having 1⁄4" screwed BSP connections.

Note: If any optional extras are required they must be clearly

specified when placing an order.

TI-P504-21 CH Issue 2

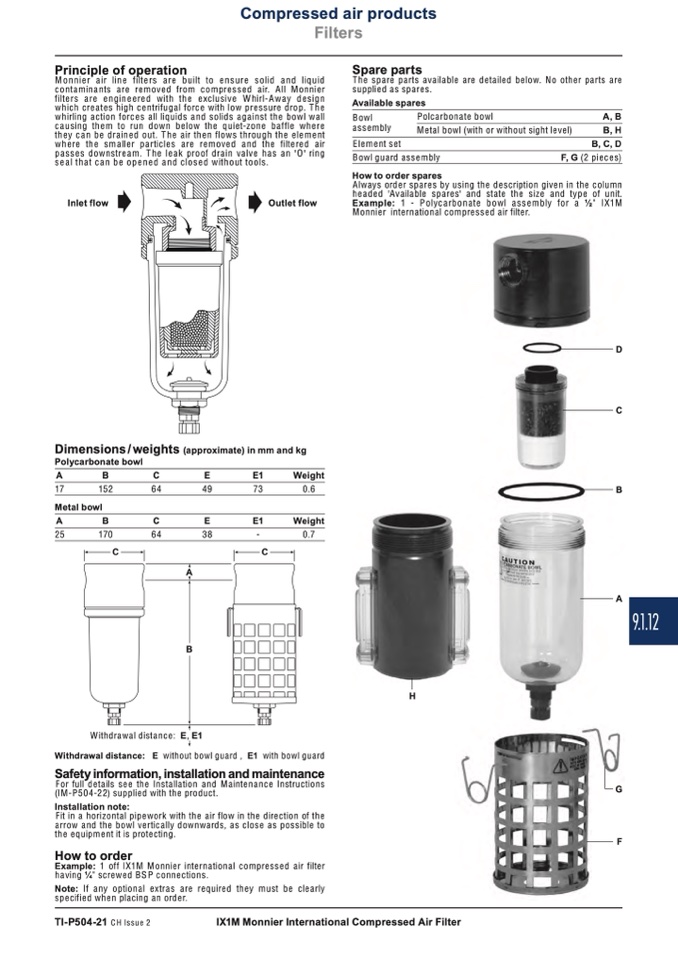

IX1M Monnier International Compressed Air Filter

The spare parts available are detailed below. No other parts are

supplied as spares.

Available spares

Bowl

assembly

Polcarbonate bowl

Metal bowl (with or without sight level)

A, B

Element set

Bowl guard assembly

B, H

B, C, D

F, G (2 pieces)

How to order spares
