Spirax Sarco - Catalogo Agosto 2017

9.1.11 Compressed air products

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Filters

TI-P504-21

CH Issue 2

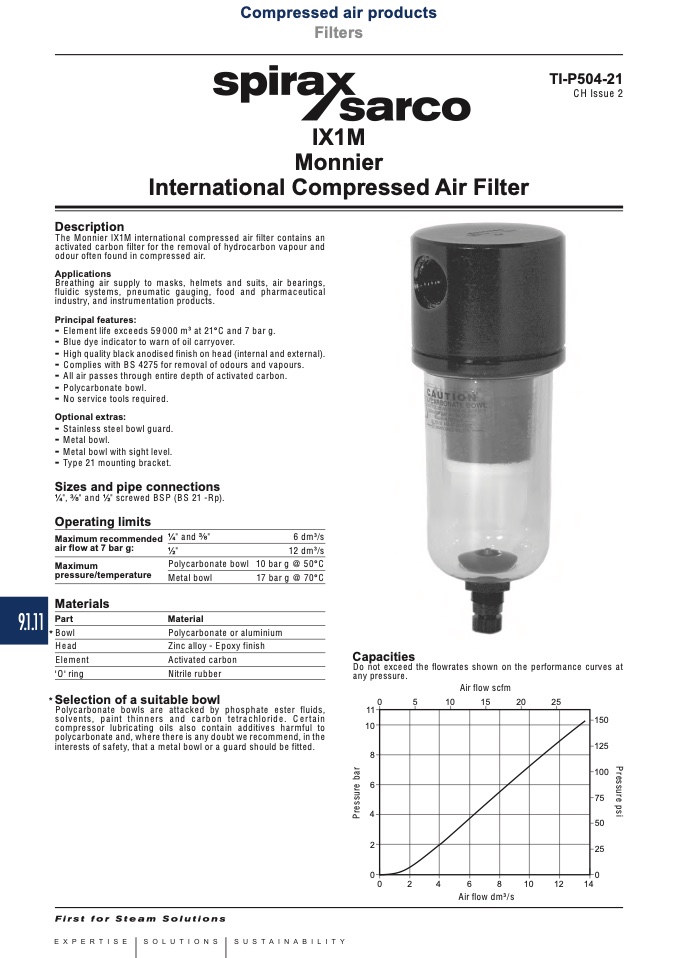

IX1M

Monnier

International Compressed Air Filter

Description

The Monnier IX1M international compressed air filter contains an

activated carbon filter for the removal of hydrocarbon vapour and

odour often found in compressed air.

Breathing air supply to masks, helmets and suits, air bearings,

fluidic systems, pneumatic gauging, food and pharmaceutical

industry, and instrumentation products.

Principal features:

-

Element life exceeds 59000 m

at 21°C and 7 bar g.

-

Blue dye indicator to warn of oil carryover.

-

High quality black anodised finish on head (internal and external).

-

Complies with BS 4275 for removal of odours and vapours.

-

All air passes through entire depth of activated carbon.

-

Polycarbonate bowl.

-

No service tools required.

Applications

Optional extras:

-

Stainless steel bowl guard.

-

Metal bowl.

-

Metal bowl with sight level.

-

Type 21 mounting bracket.

Sizes and pipe connections

1⁄4", " and 1⁄2" screwed BSP (BS 21 -Rp).

Operating limits

Maximum recommended

air flow at 7 bar g:

Maximum

pressure/temperature

Materials

Part

* Bowl

Head

Element

'O' ring

1⁄4" and "

1⁄2"

Polycarbonate bowl

Metal bowl

Material

6 dm

12 dm

10 bar g @ 50°C

17 bar g @ 70°C

Polycarbonate or aluminium

Zinc alloy - Epoxy finish

Activated carbon

Nitrile rubber

Capacities

Do not exceed the flowrates shown on the performance curves at

any pressure.

Selection of a suitable bowl

Air flow scfm

��

Polycarbonate bowls are attacked by phosphate ester fluids,

��

solvents, paint thinners and carbon tetrachloride. Certain

��

compressor lubricating oils also contain additives harmful to

polycarbonate and, where there is any doubt we recommend, in the

��

interests of safety, that a metal bowl or a guard should be fitted.

��

�

��

Air flow dm
