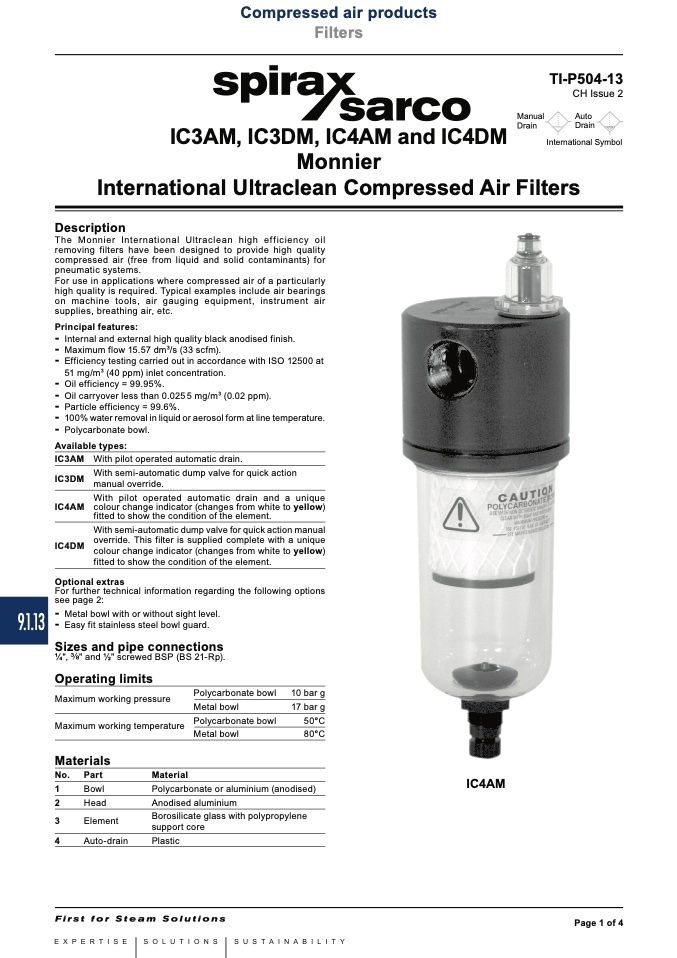

9.1.13

Compressed air products

Manual

Auto

IC3AM, IC3DM, IC4AM and IC4DM

Drain

Drain

Monnier

International Ultraclean Compressed Air Filters

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2012

Filters

TI-P504-13

CH Issue 2

International Symbol

Description

The Monnier International Ultraclean high efficiency oil

removing filters have been designed to provide high quality

compressed air (free from liquid and solid contaminants) for

pneumatic systems.

For use in applications where compressed air of a particularly

high quality is required. Typical examples include air bearings

on machine tools, air gauging equipment, instrument air

supplies, breathing air, etc.

Principal features:

-

Internal and external high quality black anodised finish.

-

Maximum flow 15.57 dm

3

/s (33 scfm).

-

Efficiency testing carried out in accordance with ISO 12500 at

51 mg/m

3

(40 ppm) inlet concentration.

-

Oil efficiency = 99.95%.

-

Oil carryover less than 0.0255 mg/m

3

(0.02 ppm).

-

Particle efficiency = 99.6%.

-

100% water removal in liquid or aerosol form at line temperature.

-

Polycarbonate bowl.

Available types:

IC3AM With pilot operated automatic drain.

IC3DM

With semi-automatic dump valve for quick action

manual override.

With pilot operated automatic drain and a unique

IC4AM colour change indicator (changes from white to yellow)

fitted to show the condition of the element.

With semi-automatic dump valve for quick action manual

IC4DM

override. This filter is supplied complete with a unique

colour change indicator (changes from white to yellow)

fitted to show the condition of the element.

For further technical information regarding the following options

see page 2:

Optional extras

-

Metal bowl with or without sight level.

-

Easy fit stainless steel bowl guard.

Sizes and pipe connections

1⁄4", " and 1⁄2" screwed BSP (BS 21-Rp).

Operating limits

Maximum working pressure

Maximum working temperature

Polycarbonate bowl

Metal bowl

Polycarbonate bowl

Metal bowl

10 bar g

17 bar g

50°C

80°C

Materials

No. Part

1

Bowl

2

Head

3

Element

4

Auto-drain

Material

IC4AM

Polycarbonate or aluminium (anodised)

Anodised aluminium

Borosilicate glass with polypropylene

support core

Plastic

Page 1 of 4
