Description

The Type 8200L is a compact self-retracting hose reel for use with

the MX15 Mixatherm steam/water mixing valve for hosedown

applications and the 9300L is for use with the MX20. The reels have

a durable powder coat finish and incorporate an internal flow path

that provides minimum spring retraction resistance. The 8200L is

fitted with 1⁄2" x 20 m of dairy washdown steam hose with crimped

on 1⁄2" swivel coupling, hose protectors and bumper stop. The

9300L is fitted with 3⁄4" x 20 m of dairy hose and 3⁄4" swivel coupling.

Operation

Withdraw hose from reel under tension by firmly holding gun

and hose. The hose rewinds automatically. It is important that the

hose is walked back to the reel safely to avoid damage to plant

and personnel.

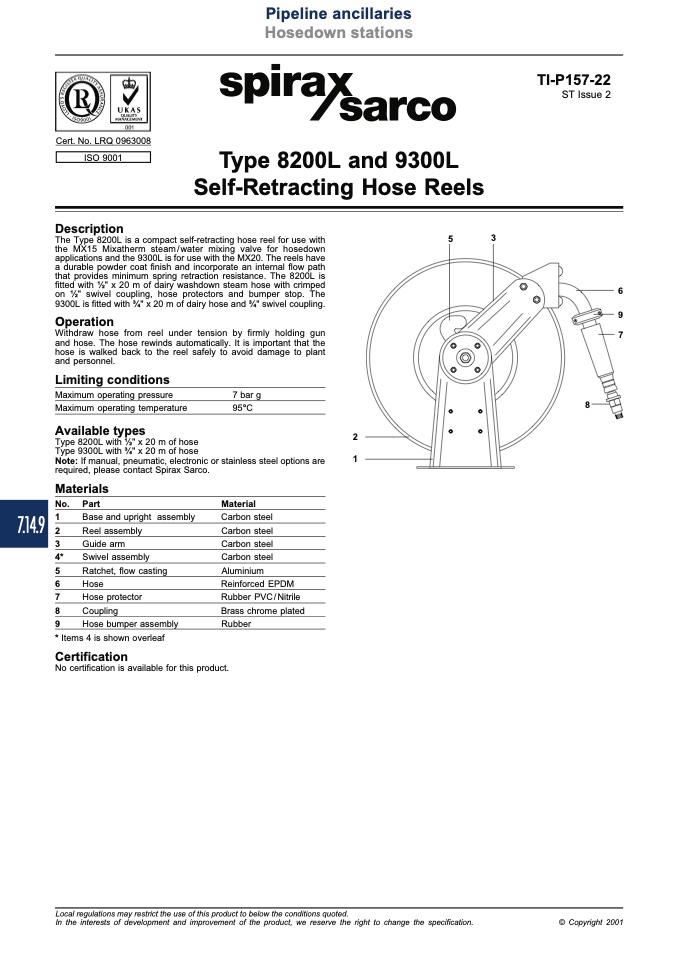

Type 8200L and 9300L

Self-Retracting Hose Reels

5

3

6

9

7

Limiting conditions

Maximum operating pressure

Maximum operating temperature

7 bar g

95°C

8

Available types

Type 8200L with 1⁄2" x 20 m of hose

Type 9300L with 3⁄4" x 20 m of hose

Note: If manual, pneumatic, electronic or stainless steel options are

required, please contact Spirax Sarco.

2

1

Materials

No. Part

1

Base and upright assembly

2

Reel assembly

3

Guide arm

4*

Swivel assembly

Material

Carbon steel

Carbon steel

Carbon steel

Carbon steel

Aluminium

Reinforced EPDM

Rubber PVC / Nitrile

Brass chrome plated

Rubber

5

6

7

8

9

* Items 4 is shown overleaf

Ratchet, flow casting

Hose

Hose protector

Coupling

Hose bumper assembly

Certification

No certification is available for this product.

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2001
