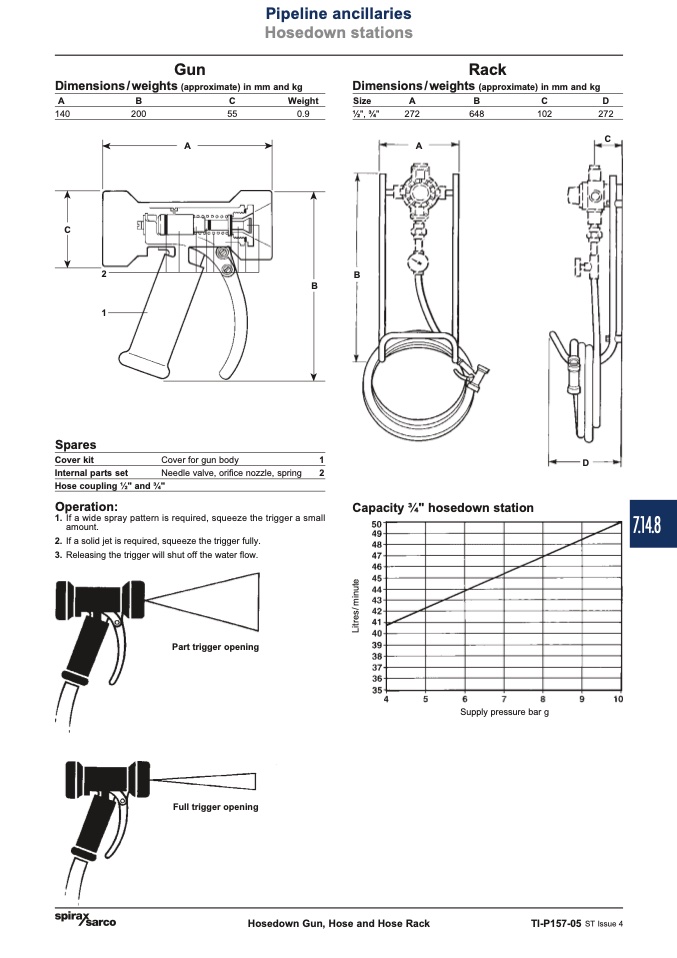

Pipeline ancillaries

Hosedown stations

Gun

Rack

Dimensions / weights (approximate) in mm and kg

Dimensions / weights (approximate) in mm and kg

A

B

C

Weight

Size

A

B

C

D

140

200

55

0.9

1⁄2", 3⁄4"

272

648

102

A

➤

A

272

C

C

2

B

B

1

Spares

Cover kit

Internal parts set

Needle valve, orifice nozzle, spring

2

Hose coupling 1⁄2" and 3⁄4"

Cover for gun body

1

D

Operation:

1. If a wide spray pattern is required, squeeze the trigger a small

Capacity 3⁄4" hosedown station

amount.

2. If a solid jet is required, squeeze the trigger fully.

3. Releasing the trigger will shut off the water flow.

Part trigger opening

Full trigger opening

Supply pressure bar g

Hosedown Gun, Hose and Hose Rack

TI-P157-05 ST Issue 4

7.14.8

➤

➤

➤
