Pipeline ancillaries

Hosedown stations

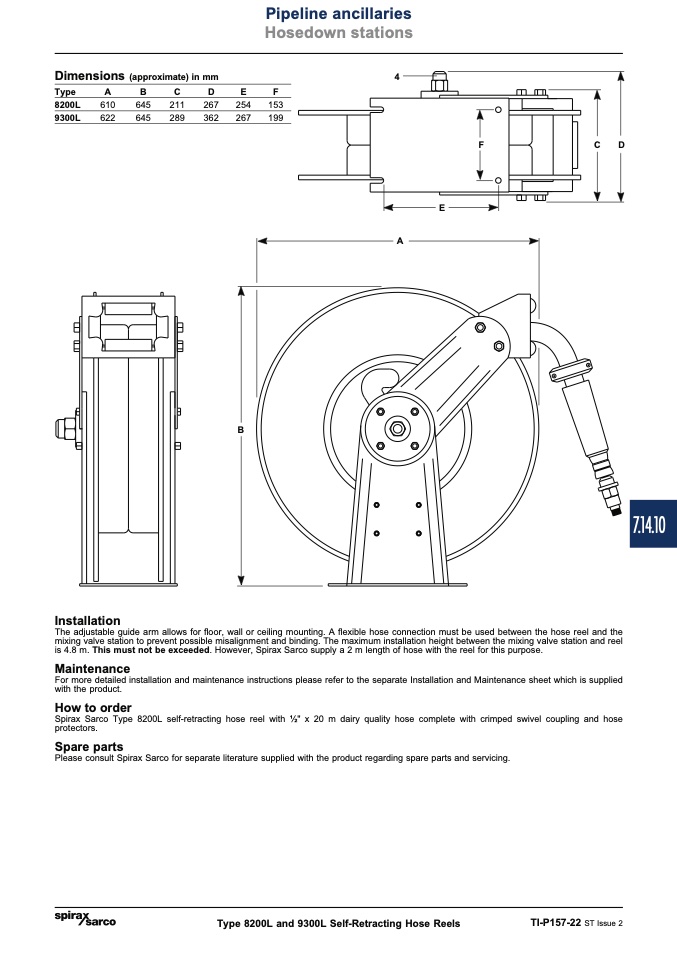

Dimensions (approximate) in mm

4

Type

A

B

C

D

E

F

8200L

610

645

211

267

254

153

9300L

622

645

289

362

267

199

E

F

C

D

A

B

Installation

The adjustable guide arm allows for floor, wall or ceiling mounting. A flexible hose connection must be used between the hose reel and the

mixing valve station to prevent possible misalignment and binding. The maximum installation height between the mixing valve station and reel

is 4.8 m. This must not be exceeded. However, Spirax Sarco supply a 2 m length of hose with the reel for this purpose.

Maintenance

For more detailed installation and maintenance instructions please refer to the separate Installation and Maintenance sheet which is supplied

with the product.

How to order

Spirax Sarco Type 8200L self-retracting hose reel with 1⁄2" x 20 m dairy quality hose complete with crimped swivel coupling and hose

protectors.

Spare parts

Please consult Spirax Sarco for separate literature supplied with the product regarding spare parts and servicing.

Type 8200L and 9300L Self-Retracting Hose Reels

TI-P157-22 ST Issue 2

7.14.10
