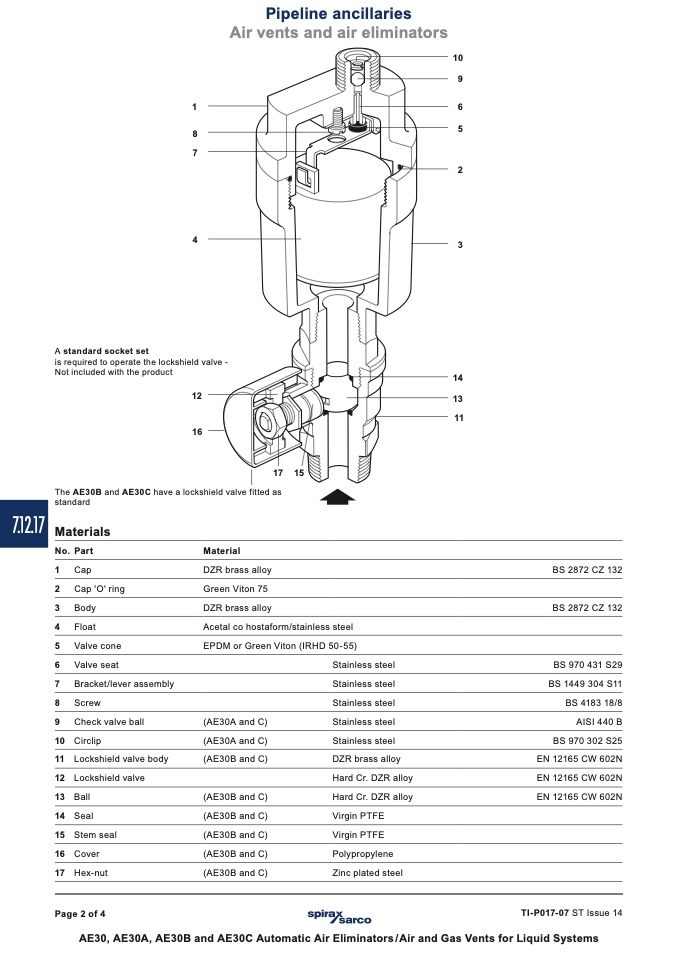

Pipeline ancillaries

Air vents and air eliminators

7.12.17

10

9

1

6

8

7

4

A standard socket set

is required to operate the lockshield valve -

Not included with the product

12

16

5

2

3

14

13

11

Materials

No. Part

1 Cap

2 Cap 'O' ring

3 Body

4 Float

5 Valve cone

6 Valve seat

7 Bracket/lever assembly

8 Screw

9 Check valve ball

10 Circlip

11 Lockshield valve body

12 Lockshield valve

13 Ball

14 Seal

15 Stem seal

16 Cover

17 Hex-nut

Material

DZR brass alloy

Green Viton 75

DZR brass alloy

Acetal co hostaform/stainless steel

EPDM or Green Viton (IRHD 50-55)

BS 2872 CZ 132

BS 2872 CZ 132

BS 970 431 S29

BS 1449 304 S11

BS 4183 18/8

AISI 440 B

BS 970 302 S25

EN 12165 CW 602N

EN 12165 CW 602N

EN 12165 CW 602N

17 15

The AE30B and AE30C have a lockshield valve fitted as

standard

(AE30A and C)

(AE30A and C)

(AE30B and C)

(AE30B and C)

(AE30B and C)

(AE30B and C)

(AE30B and C)

(AE30B and C)

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

DZR brass alloy

Hard Cr. DZR alloy

Hard Cr. DZR alloy

Virgin PTFE

Virgin PTFE

Polypropylene

Zinc plated steel

TI-P017-07 ST Issue 14

AE30, AE30A, AE30B and AE30C Automatic Air Eliminators/Air and Gas Vents for Liquid Systems

Page 2 of 4
