Pipeline ancillaries

Local regulations may restrict the use of this product to below the conditions quoted.

Air vents and air eliminators

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2016

TI-P017-07

ST Issue 14

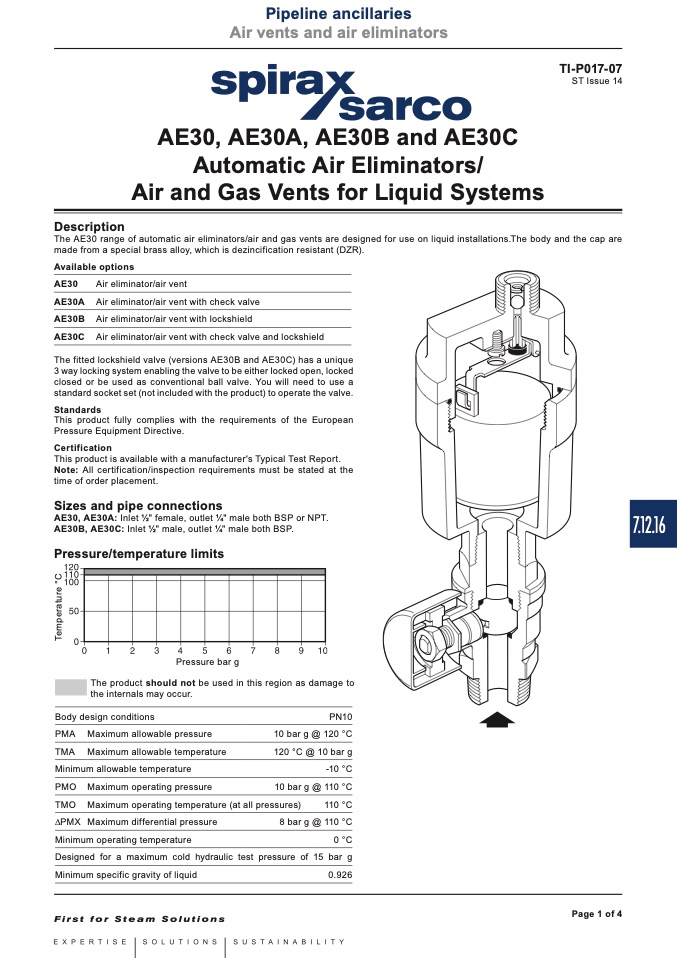

AE30, AE30A, AE30B and AE30C

Automatic Air Eliminators/

Air and Gas Vents for Liquid Systems

Description

The AE30 range of automatic air eliminators/air and gas vents are designed for use on liquid installations.The body and the cap are

made from a special brass alloy, which is dezincification resistant (DZR).

Available options

AE30

Air eliminator/air vent

AE30A Air eliminator/air vent with check valve

AE30B Air eliminator/air vent with lockshield

AE30C Air eliminator/air vent with check valve and lockshield

The fitted lockshield valve (versions AE30B and AE30C) has a unique

3 way locking system enabling the valve to be either locked open, locked

closed or be used as conventional ball valve. You will need to use a

standard socket set (not included with the product) to operate the valve.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive.

Certification

This product is available with a manufacturer's Typical Test Report.

Note: All certification/inspection requirements must be stated at the

time of order placement.

Sizes and pipe connections

AE30, AE30A: Inlet

1⁄2" female, outlet 1⁄4" male both BSP or NPT.

AE30B, AE30C: Inlet 1⁄2" male, outlet 1⁄4" male both BSP.

Pressure/temperature limits

Pressure bar g

The product should not be used in this region as damage to

the internals may occur.

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO Maximum operating pressure

PN10

10 bar g @ 120 °C

120 °C @ 10 bar g

-10 °C

10 bar g @ 110 °C

TMO Maximum operating temperature (at all pressures)

110 °C

DPMX Maximum differential pressure

8 bar g @ 110 °C

Minimum operating temperature

0 °C

Designed for a maximum cold hydraulic test pressure of 15 bar g

Minimum specific gravity of liquid

0.926

Page 1 of 4

7.12.16

T

e

m

p

e

r

a

t

u

r

e

°

C
