Pipeline ancillaries

Separators and insulation jackets

7.8.27

ISO 9001

TI-P138-01

ST Issue 6

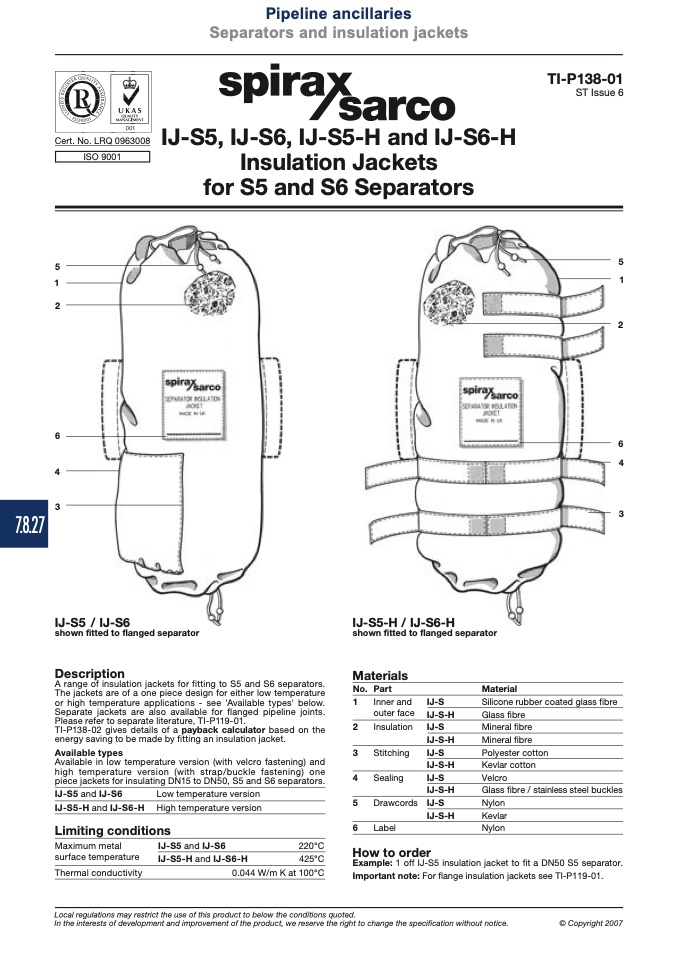

IJ-S5, IJ-S6, IJ-S5-H and IJ-S6-H

Insulation Jackets

for S5 and S6 Separators

Cert. No. LRQ 0963008

5

1

2

6

4

3

IJ-S5 / IJ-S6

shown fitted to flanged separator

Description

A range of insulation jackets for fitting to S5 and S6 separators.

The jackets are of a one piece design for either low temperature

or high temperature applications - see 'Available types' below.

Separate jackets are also available for flanged pipeline joints.

Please refer to separate literature, TI-P119-01.

TI-P138-02 gives details of a payback calculator based on the

energy saving to be made by fitting an insulation jacket.

Available types

Available in low temperature version (with velcro fastening) and

high temperature version (with strap/buckle fastening) one

piece jackets for insulating DN15 to DN50, S5 and S6 separators.

5

1

2

6

4

3

IJ-S5-H / IJ-S6-H

shown fitted to flanged separator

Materials

No. Part

1

Inner and

outer face

2

Insulation

3

Stitching

4

Sealing

5

Drawcords

6

Label

Material

IJ-S

IJ-S-H

IJ-S

IJ-S-H

IJ-S

IJ-S-H

IJ-S

IJ-S-H

IJ-S

IJ-S-H

Silicone rubber coated glass fibre

Glass fibre

Mineral fibre

Mineral fibre

IJ-S5 and IJ-S6

IJ-S5-H and IJ-S6-H

Low temperature version

High temperature version

Polyester cotton

Kevlar cotton

Velcro

Glass fibre / stainless steel buckles

Nylon

Kevlar

Nylon

Limiting conditions

Maximum metal

surface temperature

Thermal conductivity

IJ-S5 and IJ-S6

IJ-S5-H and IJ-S6-H

220°C

How to order

Example: 1 off IJ-S5 insulation jacket to fit a DN50 S5 separator.

Important note: For flange insulation jackets see TI-P119-01.

425°C

0.044 W/m K at 100°C

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2007
