Design

pressure

bar g

Design

temperature

°C

14

198

20

213

23

217

25

225

25

225

7.8.25

Pipeline ancillaries

Separators and insulation jackets

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2015

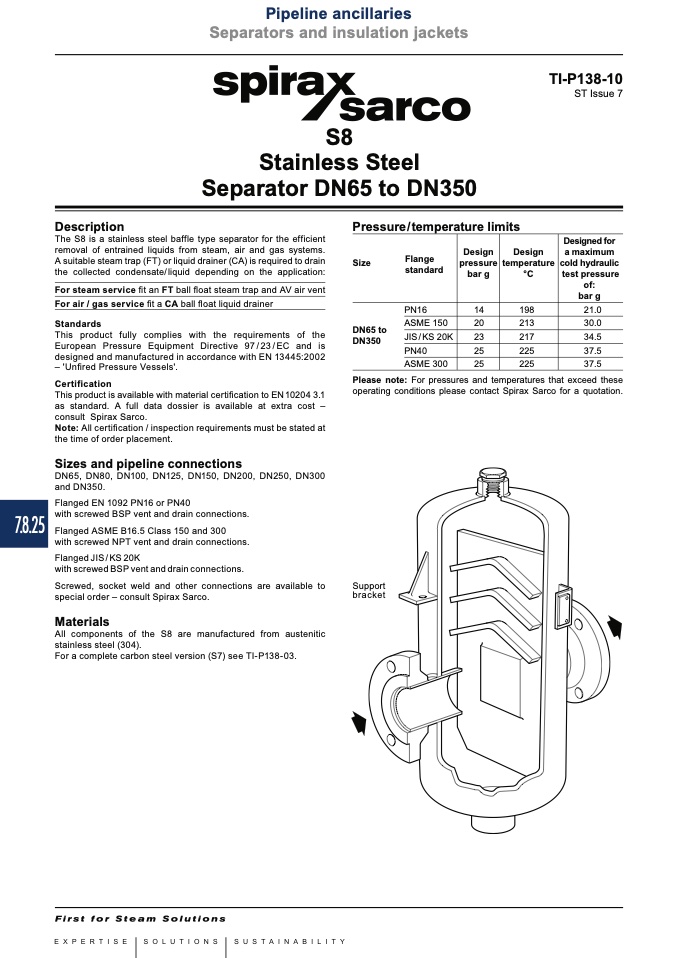

S8

Stainless Steel

Separator DN65 to DN350

TI-P138-10

ST Issue 7

Designed for

a maximum

cold hydraulic

test pressure

of:

bar g

21.0

30.0

34.5

37.5

37.5

Description

The S8 is a stainless steel baffle type separator for the efficient

removal of entrained liquids from steam, air and gas systems.

A suitable steam trap (FT) or liquid drainer (CA) is required to drain

the collected condensate/liquid depending on the application:

For steam service fit an FT ball float steam trap and AV air vent

For air / gas service fit a CA ball float liquid drainer

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97 / 23 / EC and is

designed and manufactured in accordance with EN 13445:2002

– 'Unfired Pressure Vessels'.

Certification

This product is available with material certification to EN10204 3.1

as standard. A full data dossier is available at extra cost –

consult Spirax Sarco.

Note: All certification / inspection requirements must be stated at

the time of order placement.

Sizes and pipeline connections

DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300

and DN350.

Flanged EN 1092 PN16 or PN40

with screwed BSP vent and drain connections.

Flanged ASME B16.5 Class 150 and 300

with screwed NPT vent and drain connections.

Flanged JIS / KS 20K

with screwed BSP vent and drain connections.

Screwed, socket weld and other connections are available to

special order – consult Spirax Sarco.

Materials

All components of the S8 are manufactured from austenitic

stainless steel (304).

For a complete carbon steel version (S7) see TI-P138-03.

Pressure/temperature limits

Size

DN65 to

DN350

Flange

standard

PN16

ASME 150

JIS/KS 20K

PN40

ASME 300

Please note: For pressures and temperatures that exceed these

operating conditions please contact Spirax Sarco for a quotation.

Support

bracket
