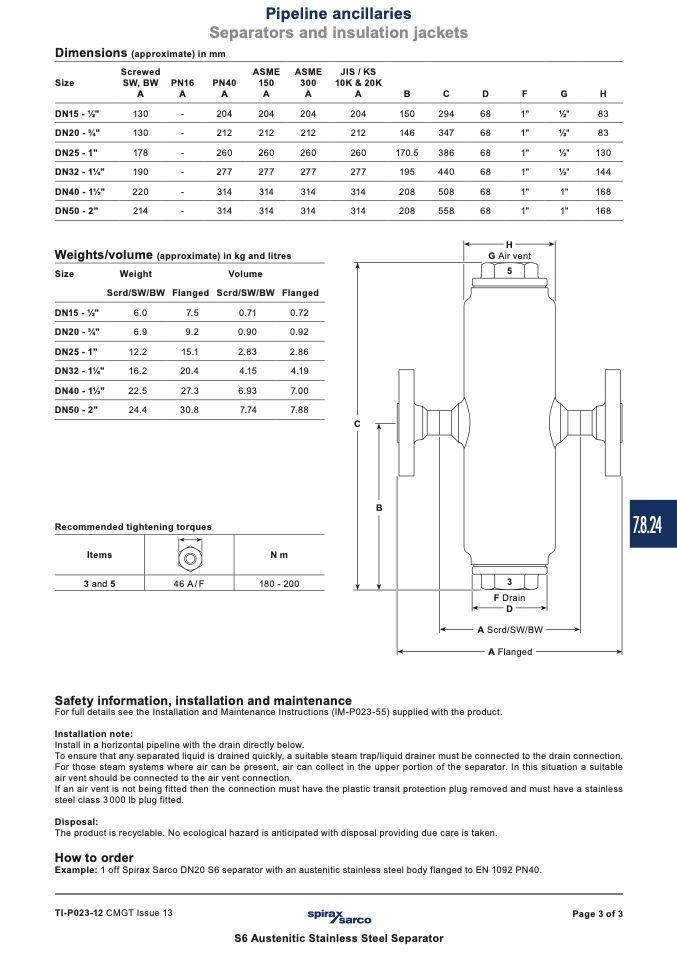

Dimensions (approximate) in mm
Pipeline ancillaries
Separators and insulation jackets
Size
DN15 - 1⁄2"
DN20 - 3⁄4"
DN25 - 1"
DN32 - 11⁄4"
DN40 - 11⁄2"
DN50 - 2"
Screwed
ASME ASME
JIS / KS
SW, BW PN16
PN40
150
300
10K & 20K
A
A
A
A
A
A
B
C
D
F
G
H
130
-
130
-
178
-
190
-
220
-
214
-
204
204
204
212
212
212
260
260
260
277
277
277
314
314
314
314
314
314
204
150
294
68
212
146
347
68
260
170.5
386
68
277
195
440
68
314
208
508
68
314
208
558
68
1"
1⁄2"
83
1"
1⁄2"
83
1"
1⁄2"
130
1"
1⁄2"
144
1"
1"
168
1"
1"
168
Weights/volume (approximate) in kg and litres
Size
Weight
Volume
Scrd/SW/BW Flanged Scrd/SW/BW Flanged
H
G Air vent
5
DN15 - 1⁄2"
6.0
DN20 - 3⁄4"
6.9
DN25 - 1"
12.2
DN32 - 11⁄4"
16.2
DN40 - 11⁄2"
22.5
DN50 - 2"
24.4
7.5
9.2
15.1
20.4
27.3
30.8
0.71
0.72
0.90
0.92
2.83
2.86
4.15
4.19
6.93
7.00
7.74
7.88
N m
180 - 200
C
Recommended tightening torques
Items
3 and 5
3
F Drain
D
A Flanged
46 A/F
B
A Scrd/SW/BW
7.8.24
Safety information, installation and maintenance
For full details see the Installation and Maintenance Instructions (IM-P023-55) supplied with the product.
Installation note:
Install in a horizontal pipeline with the drain directly below.
To ensure that any separated liquid is drained quickly, a suitable steam trap/liquid drainer must be connected to the drain connection.
For those steam systems where air can be present, air can collect in the upper portion of the separator. In this situation a suitable
air vent should be connected to the air vent connection.
If an air vent is not being fitted then the connection must have the plastic transit protection plug removed and must have a stainless
steel class 3 000 lb plug fitted.
Disposal:
The product is recyclable. No ecological hazard is anticipated with disposal providing due care is taken.
How to order
Example: 1 off Spirax Sarco DN20 S6 separator with an austenitic stainless steel body flanged to EN 1092 PN40.
TI-P023-12 CMGT Issue 13
Page 3 of 3
S6 Austenitic Stainless Steel Separator
