Pipeline ancillaries

Separators and insulation jackets

Steam

saturation

curve

ACB

D

E

F

G

7.8.23

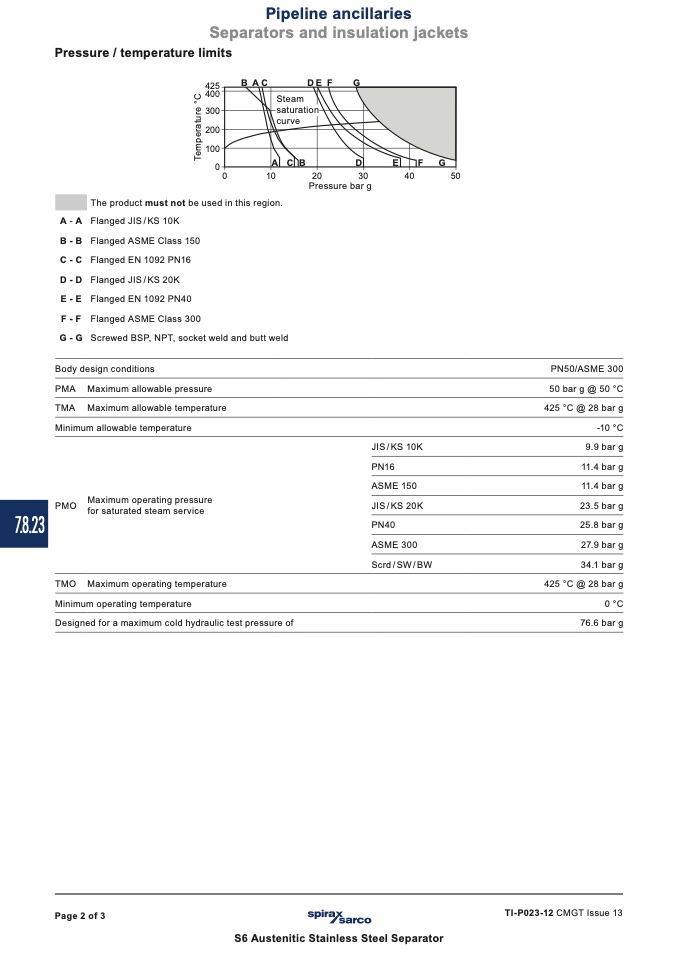

Pressure / temperature limits

425

400

300

200

100

0

0

10

20

30

40

50

Pressure bar g

The product must not be used in this region.

A-A Flanged JIS / KS 10K

B-B Flanged ASME Class 150

C-C Flanged EN 1092 PN16

D-D Flanged JIS / KS 20K

E-E Flanged EN 1092 PN40

F-F Flanged ASME Class 300

G-G Screwed BSP, NPT, socket weld and butt weld

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

Designed for a maximum cold hydraulic test pressure of

JIS/KS 10K

PN16

ASME 150

JIS / KS 20K

PN40

ASME 300

Scrd/SW/BW

PN50/ASME 300

50 bar g @ 50 °C

425 °C @ 28 bar g

-10 °C

9.9 bar g

11.4 bar g

11.4 bar g

23.5 bar g

25.8 bar g

27.9 bar g

34.1 bar g

425 °C @ 28 bar g

0 °C

76.6 bar g

BAC

DEF

G
