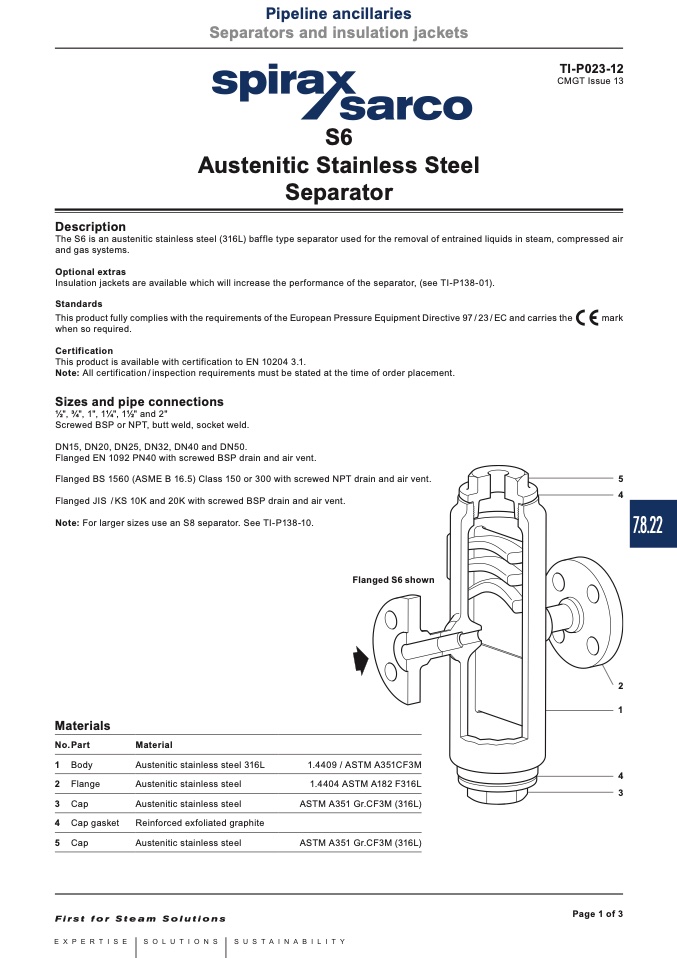

Pipeline ancillaries

Local regulations may restrict the use of this product to below the conditions quoted.

Separators and insulation jackets

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

TI-P023-12

CMGT Issue 13

S6

Austenitic Stainless Steel

Separator

Description

The S6 is an austenitic stainless steel (316L) baffle type separator used for the removal of entrained liquids in steam, compressed air

and gas systems.

Optional extras

Insulation jackets are available which will increase the performance of the separator, (see TI-P138-01).

Standards

This product fully complies with the requirements of the European Pressure Equipment Directive 97 / 23 / EC and carries the

mark

when so required.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated at the time of order placement.

Sizes and pipe connections

1⁄2", 3⁄4", 1", 11⁄4", 11⁄2" and 2"

Screwed BSP or NPT, butt weld, socket weld.

DN15, DN20, DN25, DN32, DN40 and DN50.

Flanged EN 1092 PN40 with screwed BSP drain and air vent.

Flanged BS 1560 (ASME B 16.5) Class 150 or 300 with screwed NPT drain and air vent.

Flanged JIS / KS 10K and 20K with screwed BSP drain and air vent.

Note: For larger sizes use an S8 separator. See TI-P138-10.

5

4

Flanged S6 shown

Materials

No.Part

1 Body

2 Flange

3 Cap

4 Cap gasket

5 Cap

Material

Austenitic stainless steel 316L

Austenitic stainless steel

Austenitic stainless steel

Reinforced exfoliated graphite

Austenitic stainless steel

1.4409 / ASTM A351CF3M

1.4404 ASTM A182 F316L

ASTM A351 Gr.CF3M (316L)

ASTM A351 Gr.CF3M (316L)

2

1

4

3
