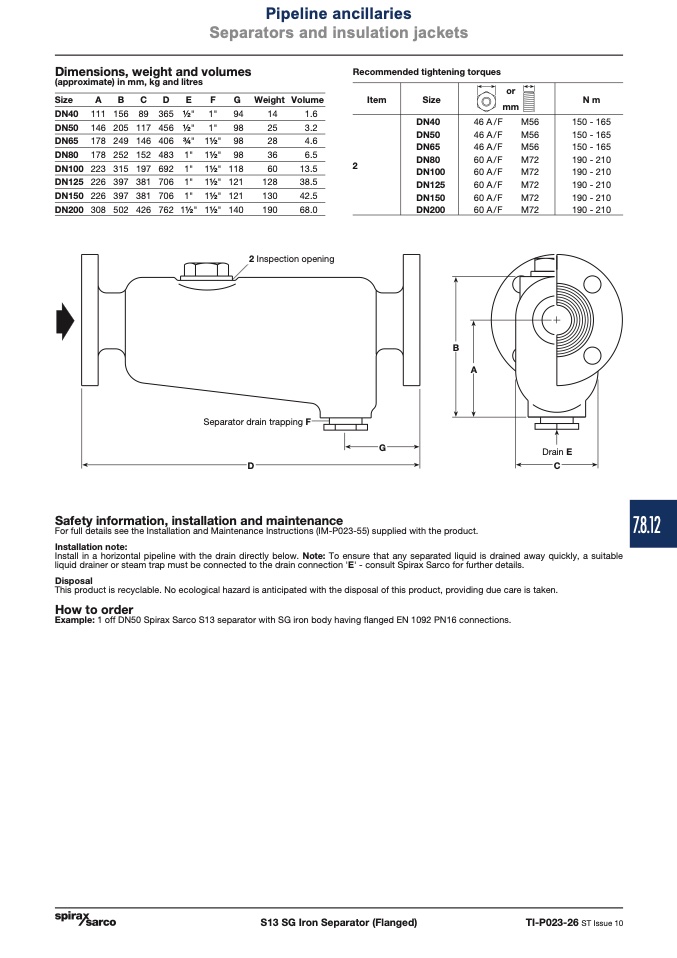

Pipeline ancillaries

Separators and insulation jackets

Dimensions, weight and volumes

(approximate) in mm, kg and litres

Recommended tightening torques

Item

Size

or

mm

N m

Size

A

B

C

D

E

F

G Weight Volume

DN40 111

DN50 146

DN65 178

DN80 178

DN100 223

DN125 226

DN150 226

DN200 308

156 89

205 117

249 146

252 152

315 197

397 381

397 381

502 426

365 1⁄2"

456 1⁄2"

406 3⁄4"

483 1"

692 1"

706 1"

706 1"

762 11⁄2"

1"

94

14

1"

98

25

11⁄2" 98

28

11⁄2" 98

36

11⁄2" 118

60

11⁄2" 121

128

38.5

11⁄2" 121

130

42.5

11⁄2" 140

190

2 Inspection opening

1.6

3.2

4.6

6.5

DN40

DN50

DN65

DN80

DN100

DN125

DN150

DN200

46 A/F

M56

46 A/F

M56

46 A/F

M56

60 A/F

M72

60 A/F

M72

60 A/F

M72

60 A/F

M72

60 A/F

M72

B

A

150 - 165

150 - 165

150 - 165

190 - 210

190 - 210

190 - 210

190 - 210

190 - 210

13.5

68.0

2

Separator drain trapping F

G

D

C

Installation note:

Install in a horizontal pipeline with the drain directly below. Note: To ensure that any separated liquid is drained away quickly, a suitable

liquid drainer or steam trap must be connected to the drain connection 'E' - consult Spirax Sarco for further details.

Disposal

This product is recyclable. No ecological hazard is anticipated with the disposal of this product, providing due care is taken.

How to order

Example: 1 off DN50 Spirax Sarco S13 separator with SG iron body having flanged EN 1092 PN16 connections.

Drain E

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions (IM-P023-55) supplied with the product.

S13 SG Iron Separator (Flanged)

TI-P023-26 ST Issue 10

7.8.12
