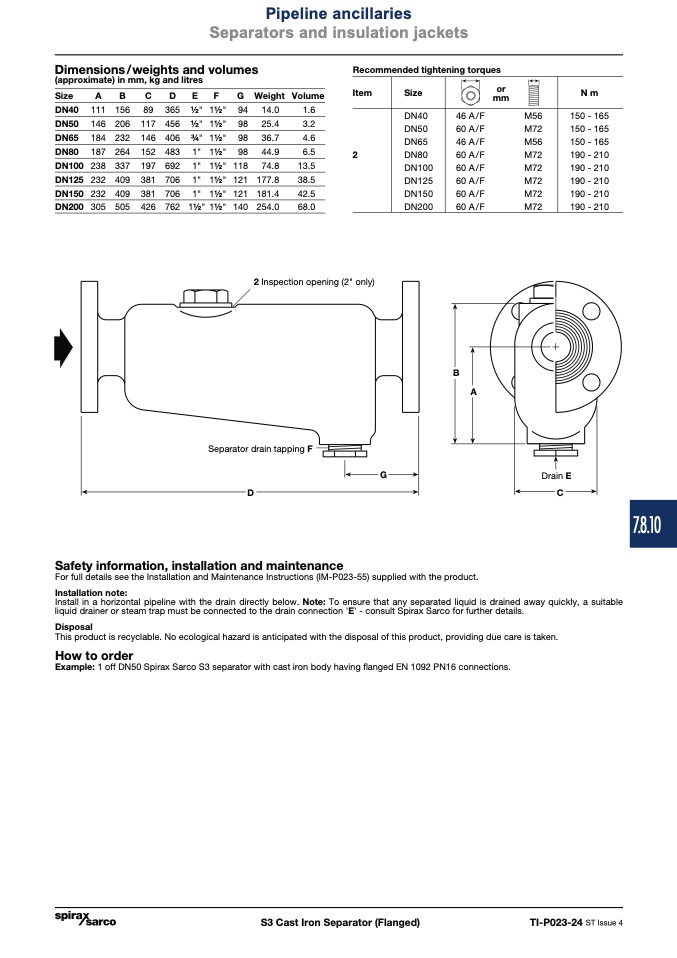

Pipeline ancillaries
Separators and insulation jackets
Dimensions/weights and volumes
(approximate) in mm, kg and litres
Recommended tightening torques
Size
A
B
DN40 111 156
DN50 146 206
DN65 184 232
DN80 187 264
DN100 238 337
DN125 232 409
DN150 232 409
DN200 305 505
C
D
89 365
117 456
146 406
152 483
197 692
381 706
381 706
426 762
E
F
1⁄2" 11⁄2"
1⁄2" 11⁄2"
3⁄4" 11⁄2"
1" 11⁄2"
1" 11⁄2"
1" 11⁄2"
1" 11⁄2"
11⁄2" 11⁄2"
G Weight Volume
94 14.0
1.6
98 25.4
3.2
98 36.7
4.6
98 44.9
6.5
118 74.8
13.5
121 177.8
38.5
121 181.4
42.5
140 254.0
68.0
Item
2
Size
DN40
DN50
DN65
DN80
DN100
DN125
DN150
DN200
or
mm
N m
M56
150 - 165
M72
150 - 165
M56
150 - 165
M72
190 - 210
M72
190 - 210
M72
190 - 210
M72
190 - 210
M72
190 - 210
46 A/F
60 A/F
46 A/F
60 A/F
60 A/F
60 A/F
60 A/F
60 A/F
2 Inspection opening (2" only)
B
A
Separator drain tapping F
G
D
C
Drain E
Safety information, installation and maintenance
For full details see the Installation and Maintenance Instructions (IM-P023-55) supplied with the product.
Installation note:
Install in a horizontal pipeline with the drain directly below. Note: To ensure that any separated liquid is drained away quickly, a suitable
liquid drainer or steam trap must be connected to the drain connection 'E' - consult Spirax Sarco for further details.
Disposal
This product is recyclable. No ecological hazard is anticipated with the disposal of this product, providing due care is taken.
How to order
Example: 1 off DN50 Spirax Sarco S3 separator with cast iron body having flanged EN 1092 PN16 connections.
S3 Cast Iron Separator (Flanged)
TI-P023-24 ST Issue 4
7.8.10
