Pipeline ancillaries

Separators and insulation jackets

Cert. No. LRQ 0963008

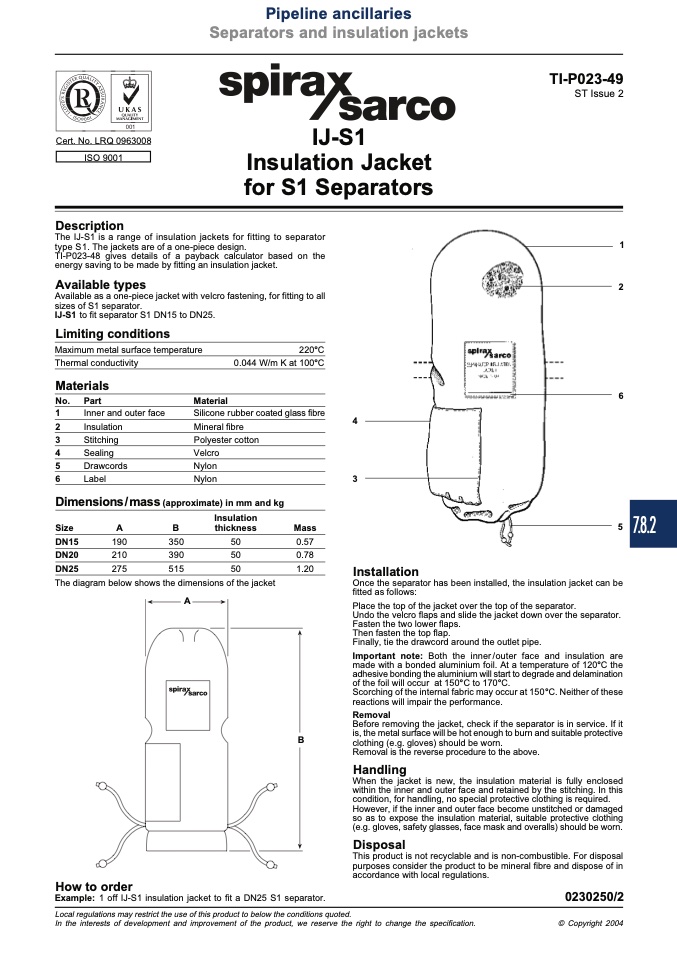

Description

IJ-S1

Insulation Jacket

for S1 Separators

TI-P023-49

ST Issue 2

1

2

6

5

ISO 9001

The IJ-S1 is a range of insulation jackets for fitting to separator

type S1. The jackets are of a one-piece design.

TI-P023-48 gives details of a payback calculator based on the

energy saving to be made by fitting an insulation jacket.

Available types

Available as a one-piece jacket with velcro fastening, for fitting to all

sizes of S1 separator.

IJ-S1 to fit separator S1 DN15 to DN25.

Limiting conditions

Maximum metal surface temperature

Thermal conductivity

Materials

No. Part

1

Inner and outer face

2

Insulation

3

Stitching

4

Sealing

5

Drawcords

6

Label

220°C

0.044 W/m K at 100°C

Material

Silicone rubber coated glass fibre

Mineral fibre

Polyester cotton

Velcro

4

3

Installation

Nylon

Nylon

Dimensions/mass(approximate) in mm and kg

A

B

How to order

Example: 1 off IJ-S1 insulation jacket to fit a DN25 S1 separator.

Size

A

DN15

190

DN20

210

DN25

275

The diagram below shows the dimensions of the jacket

Mass

Insulation

B

thickness

350

50

0.57

390

50

0.78

515

50

1.20

Once the separator has been installed, the insulation jacket can be

fitted as follows:

Place the top of the jacket over the top of the separator.

Undo the velcro flaps and slide the jacket down over the separator.

Fasten the two lower flaps.

Then fasten the top flap.

Finally, tie the drawcord around the outlet pipe.

Important note: Both the inner/outer face and insulation are

made with a bonded aluminium foil. At a temperature of 120°C the

adhesive bonding the aluminium will start to degrade and delamination

of the foil will occur at 150°C to 170°C.

Scorching of the internal fabric may occur at 150°C. Neither of these

reactions will impair the performance.

Removal

Before removing the jacket, check if the separator is in service. If it

is, the metal surface will be hot enough to burn and suitable protective

clothing (e.g. gloves) should be worn.

Removal is the reverse procedure to the above.

Handling

When the jacket is new, the insulation material is fully enclosed

within the inner and outer face and retained by the stitching. In this

condition, for handling, no special protective clothing is required.

However, if the inner and outer face become unstitched or damaged

so as to expose the insulation material, suitable protective clothing

(e.g. gloves, safety glasses, face mask and overalls) should be worn.

Disposal

This product is not recyclable and is non-combustible. For disposal

purposes consider the product to be mineral fibre and dispose of in

accordance with local regulations.

0230250/2

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2004

7.8.2
