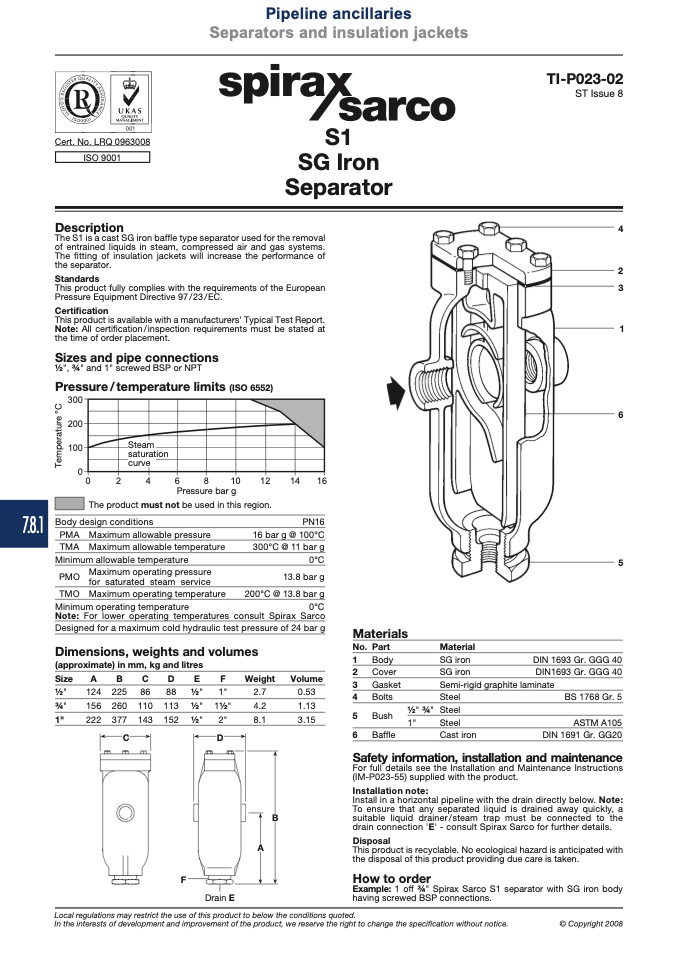

Pipeline ancillaries

Separators and insulation jackets

Steam

saturat

curve

ion

7.8.1

ISO 9001

TI-P023-02

S1

SG Iron

Separator

ST Issue 8

4

2

3

1

6

5

BS 1768 Gr. 5

Cert. No. LRQ 0963008

Description

The S1 is a cast SG iron baffle type separator used for the removal

of entrained liquids in steam, compressed air and gas systems.

The fitting of insulation jackets will increase the performance of

the separator.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Certification

This product is available with a manufacturers' Typical Test Report.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

1⁄2", 3⁄4" and 1" screwed BSP or NPT

Pressure / temperature limits (ISO 6552)

������

������

������

��

��

��

��

��

��

����

����

����

����

Pressure bar g

The product must not be used in this region.

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

PN16

16 bar g @ 100°C

300°C @ 11 bar g

0°C

13.8 bar g

200°C @ 13.8 bar g

0°C

Note: For lower operating temperatures consult Spirax Sarco

Designed for a maximum cold hydraulic test pressure of 24 bar g

Dimensions, weights and volumes

(approximate) in mm, kg and litres

Size

A

B

C

D

E

F

Weight

Volume

1⁄2"

12

4

225 86

88

1⁄2"

1"

2.7

0.53

3⁄4"

156 260 110 113 1⁄2" 11⁄2"

4.2

1.13

1"

222 377 143 152 1⁄2"

2"

8.1

3.15

Materials

No. Part

1

Body

2

Cover

3

Gasket

4

Bolts

5

Bush

6

Baffle

Material

SG iron

SG iron

Semi-rigid graphite laminate

Steel

Steel

Steel

Cast iron

DIN 1693 Gr. GGG 40

DIN1693 Gr. GGG 40

1⁄2" 3⁄4"

1"

ASTM A105

DIN 1691 Gr. GG20

C

D

F

Drain E

B

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P023-55) supplied with the product.

Installation note:

Install in a horizontal pipeline with the drain directly below. Note:

To ensure that any separated liquid is drained away quickly, a

suitable liquid drainer / steam trap must be connected to the

drain connection 'E' - consult Spirax Sarco for further details.

Disposal

This product is recyclable. No ecological hazard is anticipated with

the disposal of this product providing due care is taken.

How to order

Example: 1 off 3⁄4" Spirax Sarco S1 separator with SG iron body

having screwed BSP connections.

A

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
