Pipeline ancillaries

Separators and insulation jackets

ISO 9001

7.8.3

Steam

saturation

curve

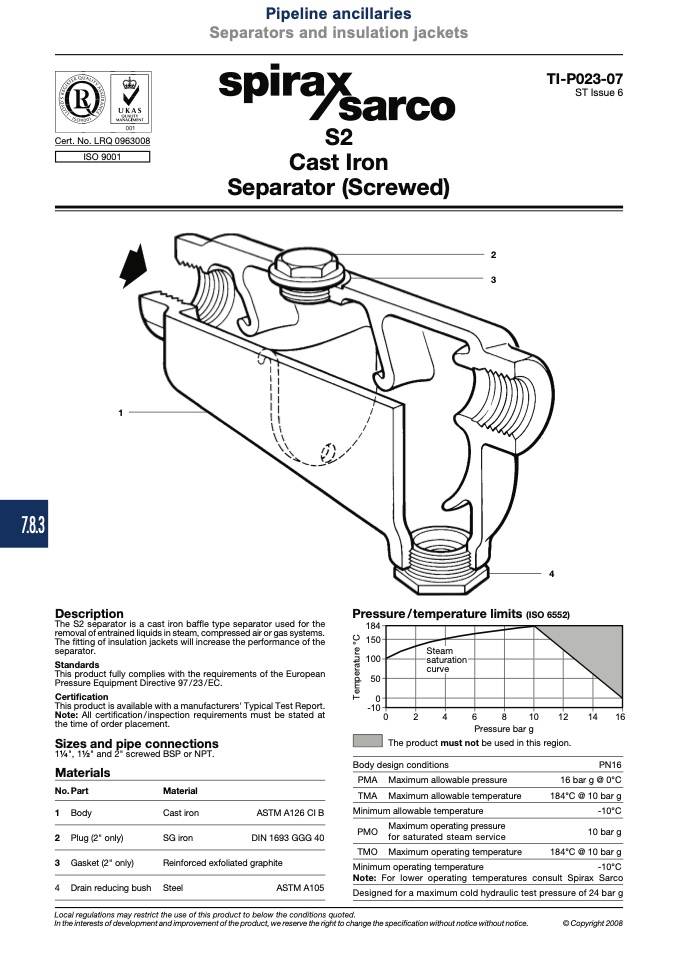

TI-P023-07

ST Issue 6

Cert. No. LRQ 0963008

S2

Cast Iron

Separator (Screwed)

2

3

1

Materials

No. Part

1 Body

2 Plug (2" only)

3 Gasket (2" only)

4 Drain reducing bush

Material

Cast iron

SG iron

Reinforced exfoliated graphite

Steel

ASTM A105

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

PN16

16 bar g @ 0°C

184°C @ 10 bar g

-10°C

10 bar g

184°C @ 10 bar g

���

���

���

��

�

���

�

�

�

�

�

��

��

��

��

Pressure bar g

The product must not be used in this region.

4

Description

The S2 separator is a cast iron baffle type separator used for the

removal of entrained liquids in steam, compressed air or gas systems.

The fitting of insulation jackets will increase the performance of the

separator.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Certification

This product is available with a manufacturers' Typical Test Report.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

11⁄4", 11⁄2" and 2" screwed BSP or NPT.

Pressure/temperature limits (ISO 6552)

ASTM A126 CI B

DIN 1693 GGG 40

-10°C

Note: For lower operating temperatures consult Spirax Sarco

Designed for a maximum cold hydraulic test pressure of 24 bar g

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice without notice.

© Copyright 2008

T

e

m

p

e

r

a

t

u

r

e

°

C
