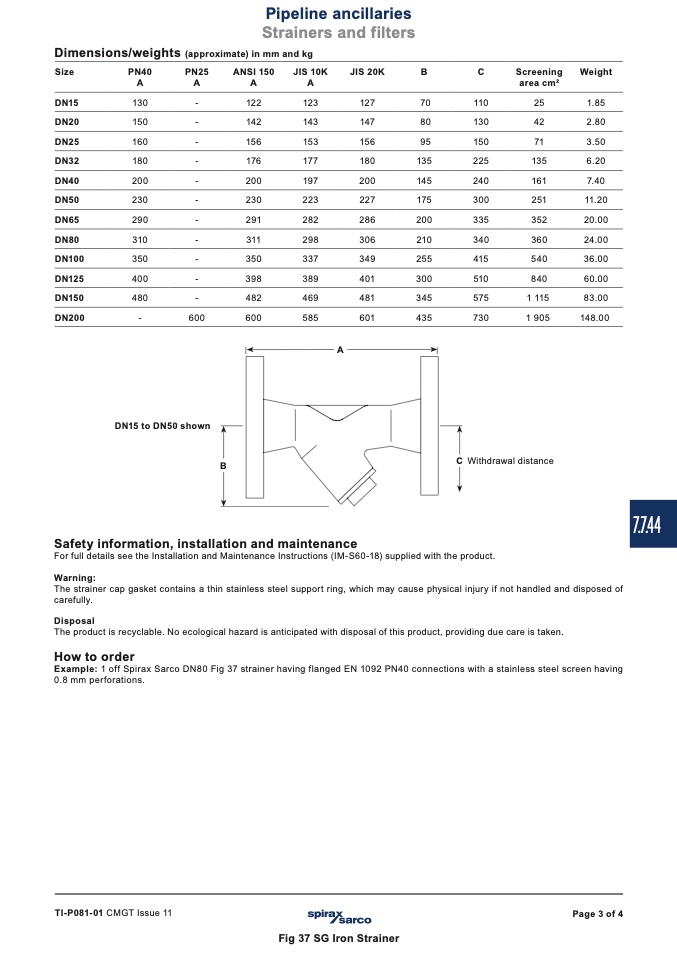

Pipeline ancillaries

Strainers and filters

Dimensions/weights (approximate) in mm and kg

Size

PN40

PN25

ANSI 150

A

A

A

DN15

130

-

122

DN20

150

-

142

DN25

160

-

156

DN32

180

-

176

DN40

200

-

200

DN50

230

-

230

DN65

290

-

291

DN80

310

-

311

DN100

350

-

350

DN125

400

-

398

DN150

480

-

482

DN200

-

600

600

DN15 to DN50 shown

B

JIS 10K

A

123

143

153

177

197

223

282

298

337

389

469

585

JIS 20K

127

147

156

180

200

227

286

306

349

401

481

601

B

C

70

110

80

130

95

150

135

225

145

240

175

300

200

335

210

340

255

415

300

510

345

575

435

730

Screening

area cm2

25

42

71

135

161

251

352

360

540

840

1 115

1 905

Weight

1.85

2.80

3.50

6.20

7.40

11.20

20.00

24.00

36.00

60.00

83.00

148.00

A

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions (IM-S60-18) supplied with the product.

Warning:

The strainer cap gasket contains a thin stainless steel support ring, which may cause physical injury if not handled and disposed of

carefully.

Disposal

The product is recyclable. No ecological hazard is anticipated with disposal of this product, providing due care is taken.

How to order

Example: 1 off Spirax Sarco DN80 Fig 37 strainer having flanged EN 1092 PN40 connections with a stainless steel screen having

0.8 mm perforations.

C Withdrawal distance

TI-P081-01 CMGT Issue 11

Page 3 of 4

Fig 37 SG Iron Strainer

7.7.44
