7.7.45

Item

2

5

Qty

Size

1

DN15

1

DN20

1

DN25

1

DN32

1

DN40

1

DN50

8

DN65

8

DN80

8

DN100

8

DN125

8

DN150

12

DN200

N m

50 - 55

60 - 66

100 - 110

250 - 275

250 - 275

310 - 340

20-24

30-35

50-55

80-88

100 - 110

90 - 100

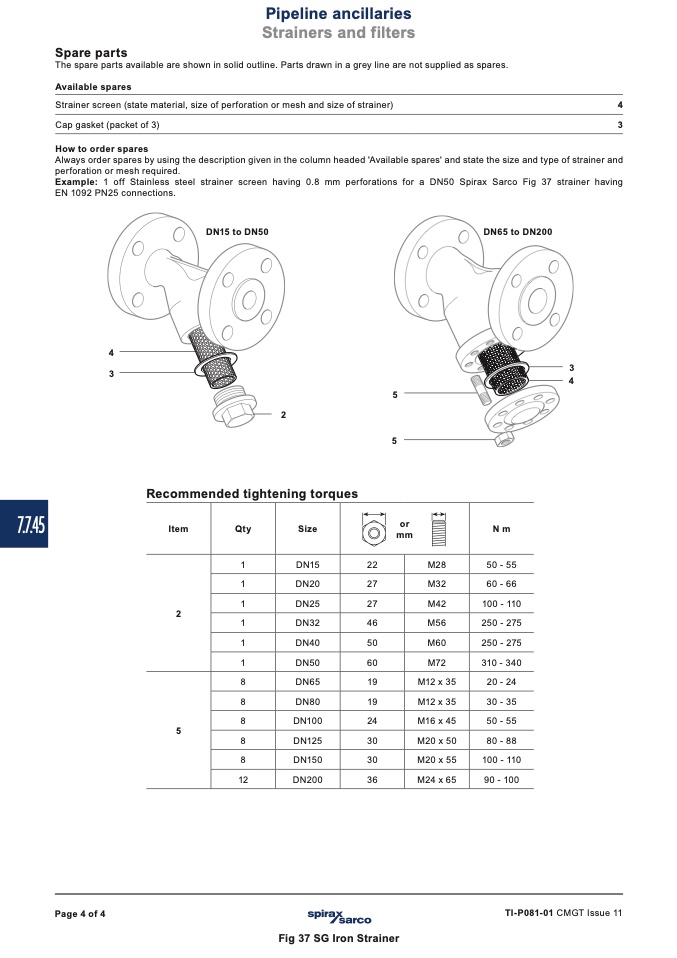

Spare parts

Pipeline ancillaries

Strainers and filters

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spares

Strainer screen (state material, size of perforation or mesh and size of strainer)

4

Cap gasket (packet of 3)

3

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of strainer and

perforation or mesh required.

Example: 1 off Stainless steel strainer screen having 0.8 mm perforations for a DN50 Spirax Sarco Fig 37 strainer having

EN 1092 PN25 connections.

Page 4 of 4

TI-P081-01 CMGT Issue 11

4

3

3

4

DN15 to DN50

DN65 to DN200

Recommended tightening torques

2

5

5

or

mm

Fig 37 SG Iron Strainer

22

27

27

46

50

60

19

19

24

30

30

36

M28

M32

M42

M56

M60

M72

M12x35

M12x35

M16x45

M20x50

M20 x 55

M24 x 65
