Pipeline ancillaries

HVB3aslltvoaplveaslve

DN25 to DN50 - Spare parts (see page 6 for sizes DN65 - DN150)

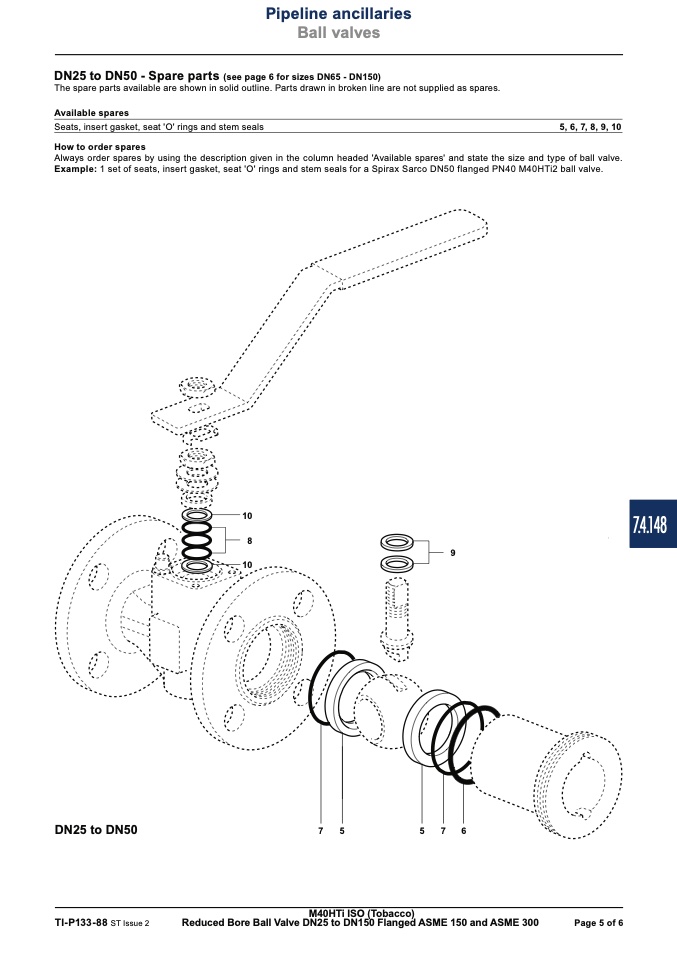

The spare parts available are shown in solid outline. Parts drawn in broken line are not supplied as spares.

Available spares

Seats, insert gasket, seat 'O' rings and stem seals

5, 6, 7, 8, 9, 10

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 set of seats, insert gasket, seat 'O' rings and stem seals for a Spirax Sarco DN50 flanged PN40 M40HTi2 ball valve.

10

8

10

9

DN25 to DN50

TI-P133-88 ST Issue 2

7 5

5 7

6

M40HTi ISO (Tobacco)

Reduced Bore Ball Valve DN25 to DN150 Flanged ASME 150 and ASME 300

Page 5 of 6

7.4.148
