Pipeline ancillaries

HVB3aslltvoaplveaslve

7.4.149

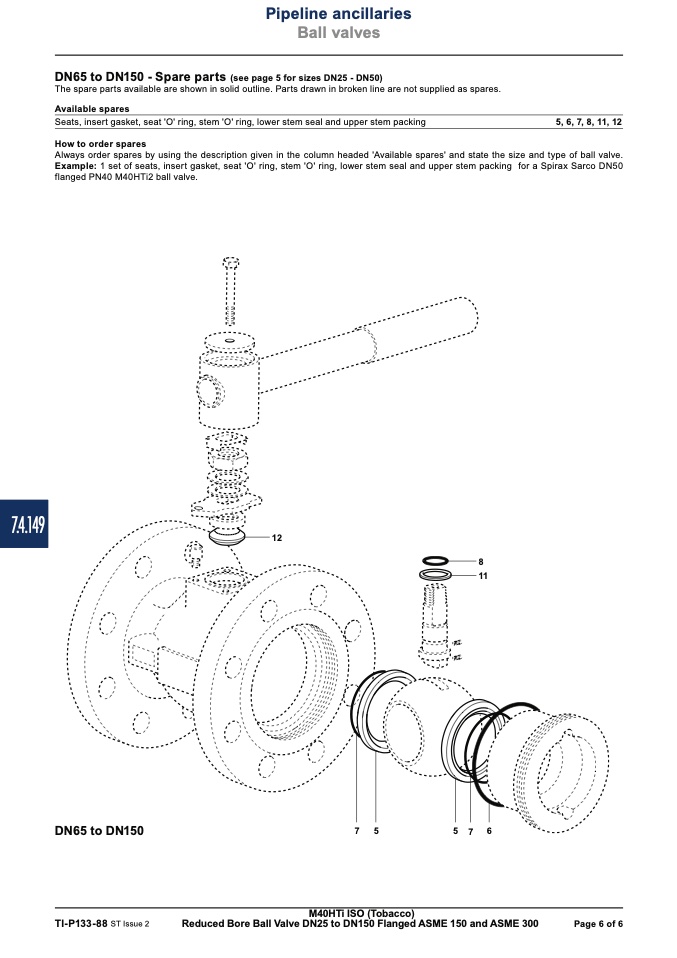

DN65 to DN150 - Spare parts (see page 5 for sizes DN25 - DN50)

The spare parts available are shown in solid outline. Parts drawn in broken line are not supplied as spares.

Available spares

Seats, insert gasket, seat 'O' ring, stem 'O' ring, lower stem seal and upper stem packing

5, 6, 7, 8, 11, 12

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 set of seats, insert gasket, seat 'O' ring, stem 'O' ring, lower stem seal and upper stem packing for a Spirax Sarco DN50

flanged PN40 M40HTi2 ball valve.

12

8

11

DN65 to DN150

TI-P133-88 ST Issue 2

7 5

5 7 6

M40HTi ISO (Tobacco)

Reduced Bore Ball Valve DN25 to DN150 Flanged ASME 150 and ASME 300

Page 6 of 6
