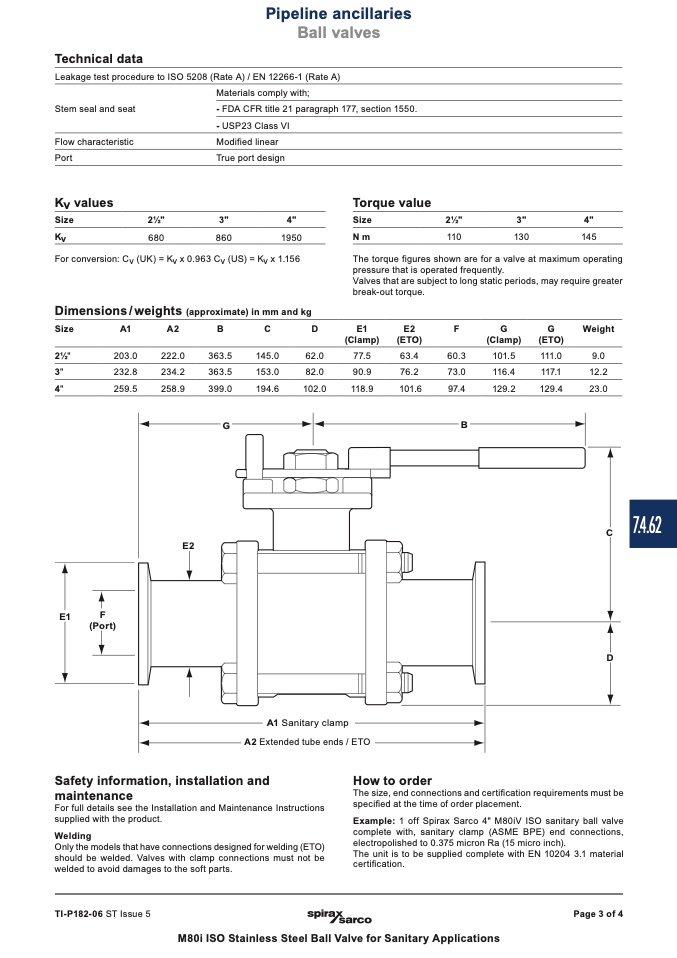

Pipeline ancillaries

HVB3aslltvoaplveaslve

Technical data

Leakage test procedure to ISO

Stem seal and seat

5208 (Rate A) / EN 12266-1 (Rate A)

Materials comply with;

- FDA CFR title 21 paragraph 177, section 1550.

- USP23 Class VI

Modified linear

True port design

Flow characteristic

Port

Kv values

Size

21⁄2"

3"

4"

Torque value

Size

21⁄2"

3"

4"

Nm

110

130

145

The torque figures shown are for a valve at maximum operating

pressure that is operated frequently.

Valves that are subject to long static periods, may require greater

break-out torque.

Kv

680

860

1950

For conversion: Cv (UK) = Kv x 0.963 Cv (US) = Kv x 1.156

Dimensions / weights (approximate) in mm and kg

Size

A1

A2

B

C

D

E1

E2

F

G

G

Weight

21⁄2"

203.0

222.0

3"

232.8

234.2

4"

259.5

258.9

363.5

145.0

363.5

153.0

399.0

194.6

(Clamp)

(ETO)

62.0

77.5

63.4

60.3

82.0

90.9

76.2

73.0

102.0

118.9

101.6

97.4

(Clamp)

101.5

116.4

129.2

(ETO)

111.0

9.0

117.1

12.2

129.4

23.0

C

D

G

B

E2

E1

F

(Port)

Safety information, installation and

maintenance

For full details see the Installation and Maintenance Instructions

supplied with the product.

Welding

Only the models that have connections designed for welding (ETO)

should be welded. Valves with clamp connections must not be

welded to avoid damages to the soft parts.

How to order

A1 Sanitary clamp

A2 Extended tube ends / ETO

The size, end connections and certification requirements must be

specified at the time of order placement.

Example: 1 off Spirax Sarco 4" M80iV ISO sanitary ball valve

complete with, sanitary clamp (ASME BPE) end connections,

electropolished to 0.375 micron Ra (15 micro inch).

The unit is to be supplied complete with EN 10204 3.1 material

certification.

TI-P182-06 ST Issue 5

Page 3 of 4

M80i ISO Stainless Steel Ball Valve for Sanitary Applications

7.4.62
