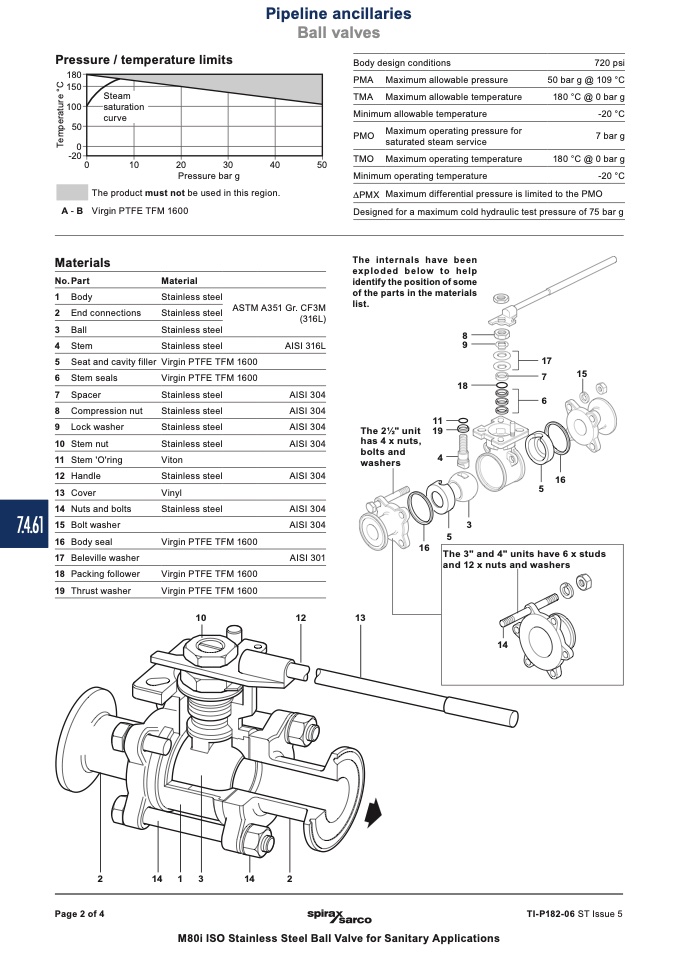

Pressure / temperature limits

������

������

Steam

������

saturation

����

curve

��

������

��

����

����

����

����

����

Pressure bar g

The product must not be used in this region.

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure for

saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

DPMX MaximumdifferentialpressureislimitedtothePMO

Designed for a maximum cold hydraulic test pressure of 75 bar g

The internals have been

exploded below to help

identify the position of some

of the parts in the materials

list.

A - B Virgin PTFE TFM 1600

Materials

No.Part

1 Body

2 End connections

3 Ball

4 Stem

5 Seat and cavity filler

6 Stem seals

7 Spacer

8 Compression nut

9 Lock washer

10 Stem nut

11 Stem 'O'ring

12 Handle

13 Cover

14 Nuts and bolts

Material

Stainless steel

Stainless steel

ASTM

Stainless steel

Stainless steel

Virgin PTFE TFM 1600

Virgin PTFE TFM 1600

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Viton

Stainless steel

Vinyl

Stainless steel

Virgin PTFE TFM 1600

Virgin PTFE TFM 1600

Virgin PTFE TFM 1600

A351 Gr. CF3M

(316L)

AISI 316L

AISI 304

AISI 304

AISI 304

AISI 304

AISI 304

AISI 304

AISI 304

AISI 301

8

9

18

4

17

7

7.4.61

15

17 Beleville washer

5

3

Bolt washer

16 Body seal

The 3" and 4" units have 6 x studs

and 12 x nuts and washers

14

18 Packing follower

19 Thrust washer
