Spare parts

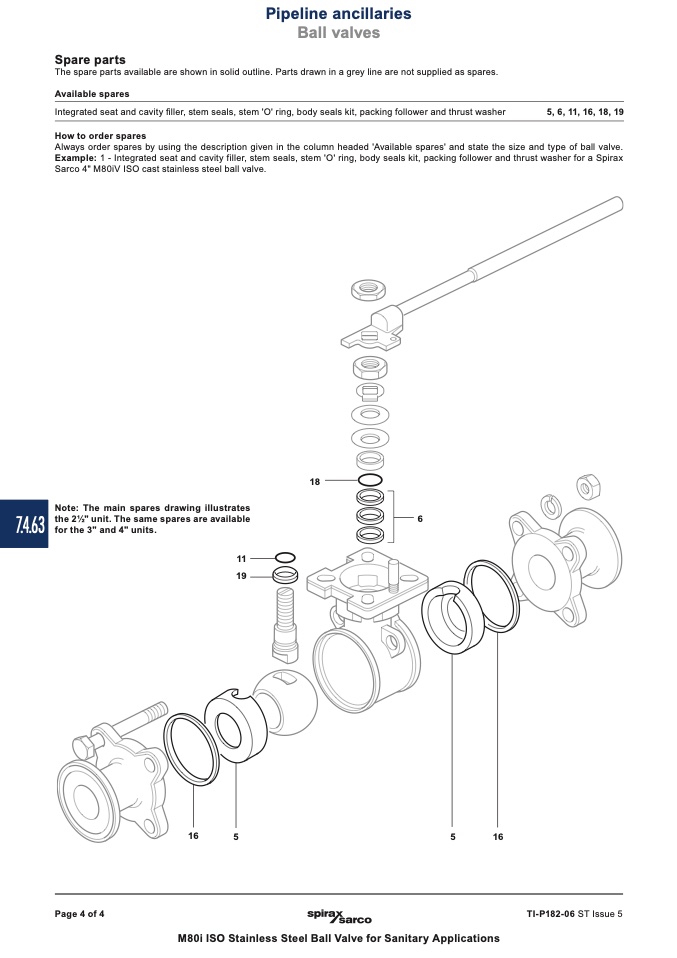

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spares

Integrated seat and cavity filler, stem seals, stem 'O' ring, body seals kit, packing follower and thrust washer

5, 6, 11, 16, 18, 19

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of ball valve.

Example: 1 - Integrated seat and cavity filler, stem seals, stem 'O' ring, body seals kit, packing follower and thrust washer for a Spirax

Sarco 4" M80iV ISO cast stainless steel ball valve.

18

Note: The main spares drawing illustrates

the 21⁄2" unit. The same spares are available

for the 3" and 4" units.

11

19

6

16

5

5

16
