Pipeline ancillaries

Bellows sealed stop valves

7.1.17

Spare parts - DN200

and

DN250

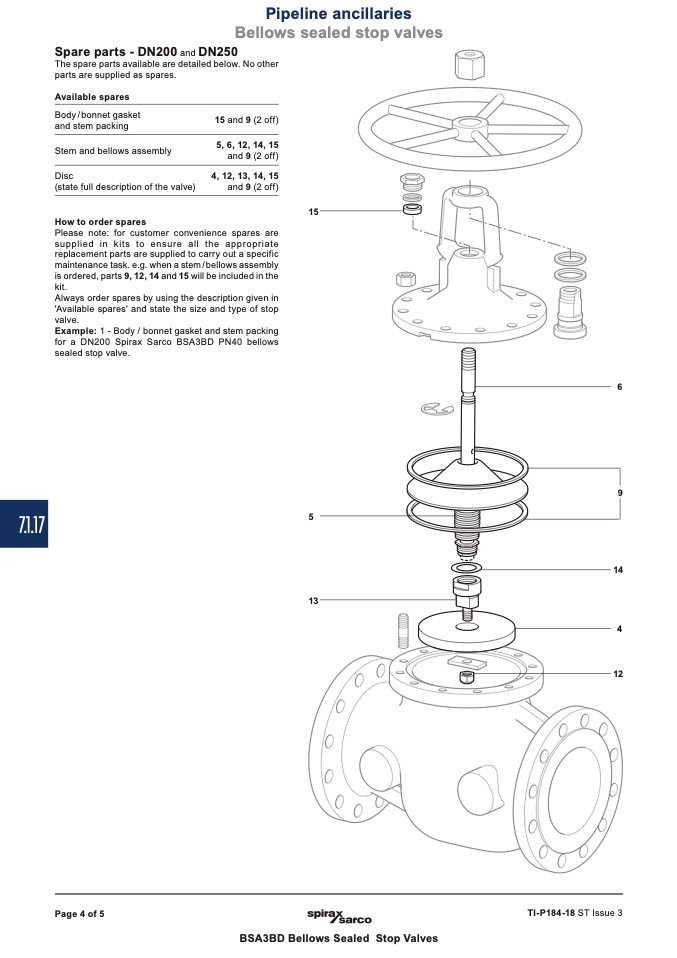

The spare parts available are detailed below. No other

parts are supplied as spares.

Available spares

Body / bonnet gasket

and stem packing

Stem and bellows assembly

Disc

(state full description of the valve)

How to order spares

15 and 9 (2 off)

5, 6, 12, 14, 15

and 9 (2 off)

4, 12, 13, 14, 15

and 9 (2 off)

Please note: for customer convenience spares are

supplied in kits to ensure all the appropriate

replacement parts are supplied to carry out a specific

maintenance task. e.g. when a stem / bellows assembly

is ordered, parts 9, 12, 14 and 15 will be included in the

kit.

Always order spares by using the description given in

'Available spares' and state the size and type of stop

valve.

Example: 1 - Body / bonnet gasket and stem packing

for a DN200 Spirax Sarco BSA3BD PN40 bellows

sealed stop valve.

15

5

13

6

9

14

4

12

Page 4 of 5

TI-P184-18 ST Issue 3

BSA3BD Bellows Sealed Stop Valves
