Pipeline ancillaries

Bellows sealed stop valves

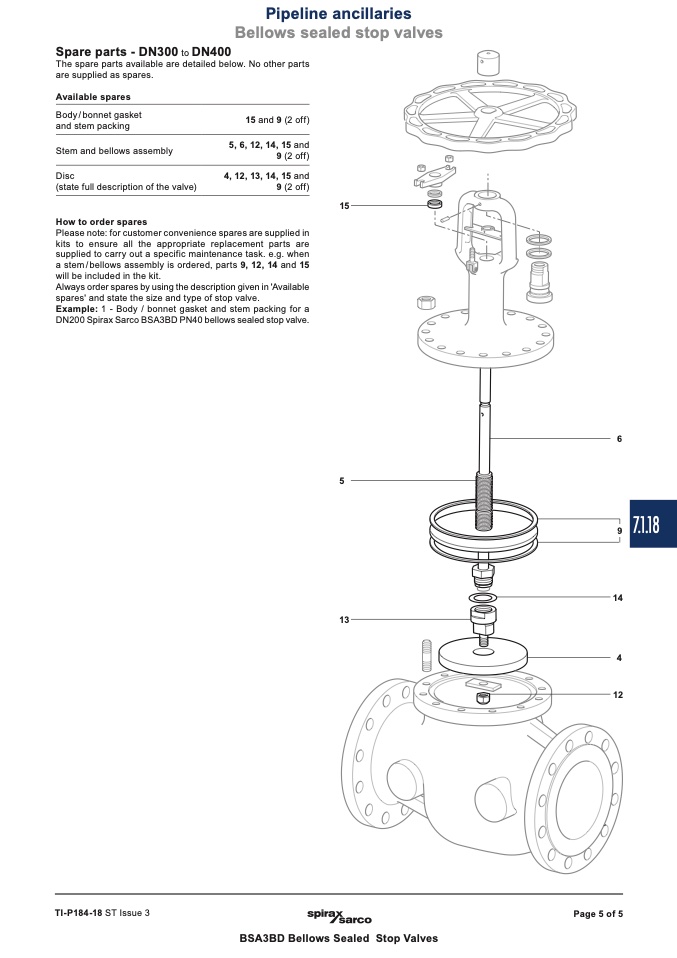

Spare parts - DN300

to

DN400

The spare parts available are detailed below. No other parts

are supplied as spares.

Available spares

Body / bonnet gasket

and stem packing

Stem and bellows assembly

Disc

(state full description of the valve)

How to order spares

15 and 9 (2 off)

5, 6, 12, 14, 15 and

9 (2 off)

4, 12, 13, 14, 15 and

9 (2 off)

15

Please note: for customer convenience spares are supplied in

kits to ensure all the appropriate replacement parts are

supplied to carry out a specific maintenance task. e.g. when

a stem/bellows assembly is ordered, parts 9, 12, 14 and 15

will be included in the kit.

Always order spares by using the description given in 'Available

spares' and state the size and type of stop valve.

Example: 1 - Body / bonnet gasket and stem packing for a

DN200 Spirax Sarco BSA3BD PN40 bellows sealed stop valve.

5

13

6

9

14

4

12

TI-P184-18 ST Issue 3

Page 5 of 5

BSA3BD Bellows Sealed Stop Valves

7.1.18
