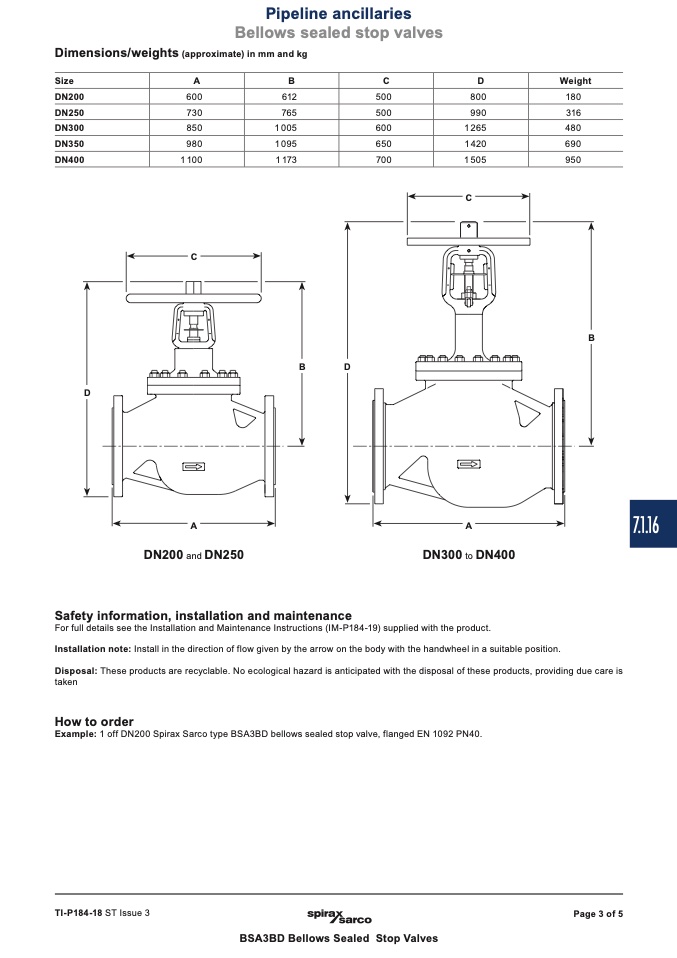

Pipeline ancillaries

Bellows sealed stop valves

Dimensions/weights (approximate) in mm and kg

Size

DN200

DN250

DN300

DN350

DN400

Weight

180

316

480

690

950

A B C D

600 612 500 800

730 765 500 990

850 1 005 600 1 265

980 1 095 650 1420

1100 1173 700 1 505

A

A

DN200

and

DN250

Safety information, installation and maintenance

DN300

to

DN400

For full details see the Installation and Maintenance Instructions (IM-P184-19) supplied with the product.

Installation note: Install in the direction of flow given by the arrow on the body with the handwheel in a suitable position.

Disposal: These products are recyclable. No ecological hazard is anticipated with the disposal of these products, providing due care is

taken

How to order

Example: 1 off DN200 Spirax Sarco type BSA3BD bellows sealed stop valve, flanged EN 1092 PN40.

TI-P184-18 ST Issue 3

Page 3 of 5

BSA3BD Bellows Sealed Stop Valves

C

C

D

D

B

B

7.1.16
