R
Y
A
C
L
D
P
H
H
M
F
J
G
A
T
S
B
N
K

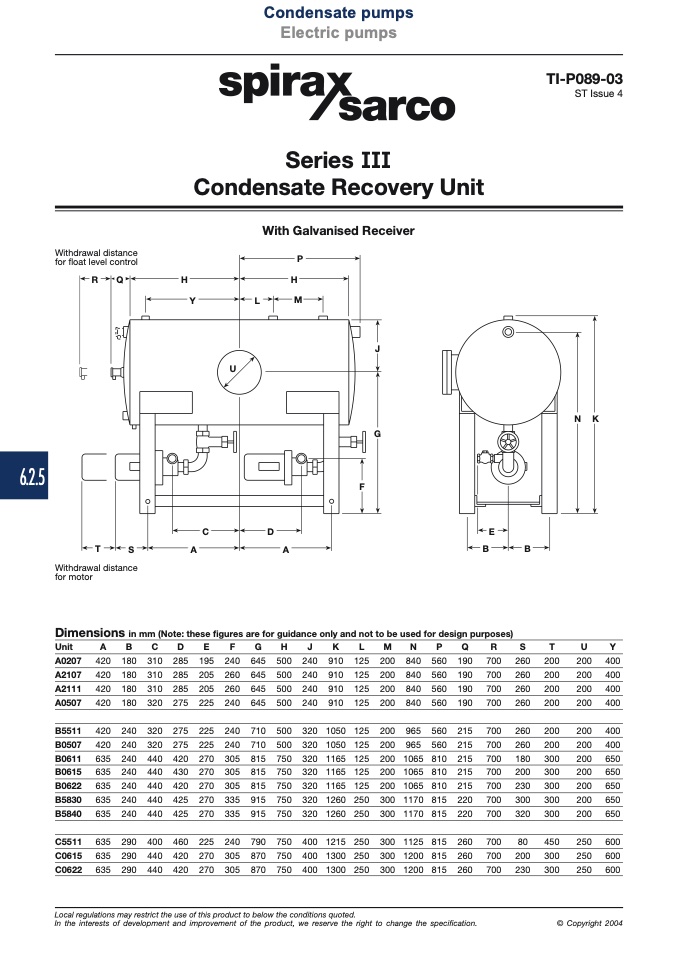

ST Issue 4
Withdrawal distance
for float level control
Q
U
E
B
Withdrawal distance
for motor
figures are for guidance only and not to be used for design purposes)
Unit
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
T
U
Y
A0207 420 180 310 285 195 240 645 500 240 910 125 200 840 560 190 700 260 200
200 400
A2107 420 180 310 285 205 260 645 500 240 910 125 200 840 560 190 700 260 200
200 400
A2111 420 180 310 285 205 260 645 500 240 910 125 200 840 560 190 700 260 200
200 400
A0507 420 180 320 275 225 240 645 500 240 910 125 200 840 560 190 700 260 200
200 400
B5511 420 240 320 275 225 240 710 500 320 1050 125 200 965 560 215 700 260 200
200 400
B0507 420 240 320 275 225 240 710 500 320 1050 125 200 965 560 215 700 260 200
200 400
B0611 635 240 440 420 270 305 815 750 320 1165 125 200 1065 810 215 700 180 300
200 650
B0615 635 240 440 430 270 305 815 750 320 1165 125 200 1065 810 215 700 200 300
200 650
B0622 635 240 440 420 270 305 815 750 320 1165 125 200 1065 810 215 700 230 300
200 650
B5830 635 240 440 425 270 335 915 750 320 1260 250 300 1170 815 220 700 300 300
200 650
B5840 635 240 440 425 270 335 915 750 320 1260 250 300 1170 815 220 700 320 300
200 650
C5511 635 290 400 460 225 240 790 750 400 1215 250 300 1125 815 260 700
80
450
250 600
C0615 635 290 440 420 270 305 870 750 400 1300 250 300 1200 815 260 700 200 300
250 600
C0622 635 290 440 420 270 305 870 750 400 1300 250 300 1200 815 260 700 230 300
250 600
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification.
© Copyright 2004
