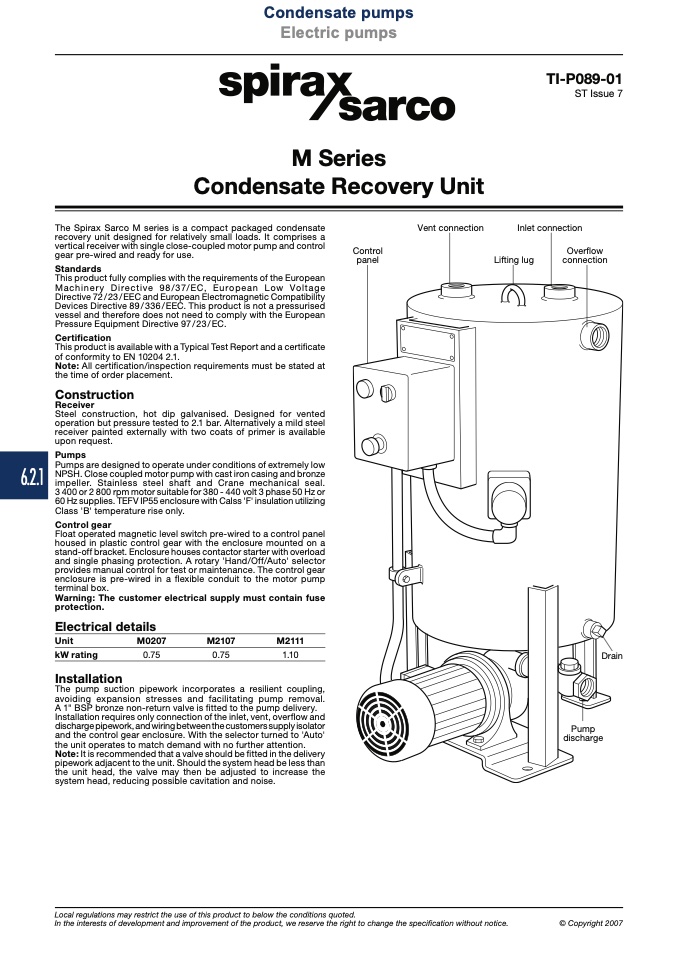

Condensate pumps

Electric pumps

6.2.1

M Series

Condensate Recovery Unit

TI-P089-01

ST Issue 7

Inlet connection

The Spirax Sarco M series is a compact packaged condensate

recovery unit designed for relatively small loads. It comprises a

vertical receiver with single close-coupled motor pump and control

gear pre-wired and ready for use.

Standards

This product fully complies with the requirements of the European

Machinery Directive 98/37/EC, European Low Voltage

Directive 72 / 23 / EEC and European Electromagnetic Compatibility

Devices Directive 89 / 336 / EEC. This product is not a pressurised

vessel and therefore does not need to comply with the European

Pressure Equipment Directive 97/23/EC.

Certification

This product is available with a Typical Test Report and a certificate

of conformity to EN 10204 2.1.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Construction

Receiver

Steel construction, hot dip galvanised. Designed for vented

operation but pressure tested to 2.1 bar. Alternatively a mild steel

receiver painted externally with two coats of primer is available

upon request.

Pumps

Pumps are designed to operate under conditions of extremely low

NPSH. Close coupled motor pump with cast iron casing and bronze

impeller. Stainless steel shaft and Crane mechanical seal.

3 400 or 2 800 rpm motor suitable for 380 - 440 volt 3 phase 50 Hz or

60 Hz supplies. TEFV IP55 enclosure with Calss 'F' insulation utilizing

Class 'B' temperature rise only.

Control gear

Float operated magnetic level switch pre-wired to a control panel

housed in plastic control gear with the enclosure mounted on a

stand-off bracket. Enclosure houses contactor starter with overload

and single phasing protection. A rotary 'Hand/Off/Auto' selector

provides manual control for test or maintenance. The control gear

enclosure is pre-wired in a flexible conduit to the motor pump

terminal box.

Warning: The customer electrical supply must contain fuse

protection.

Electrical details

Unit

M0207

M2107

M2111

kW rating

0.75

0.75

1.10

Installation

The pump suction pipework incorporates a resilient coupling,

avoiding expansion stresses and facilitating pump removal.

A 1" BSP bronze non-return valve is fitted to the pump delivery.

Installation requires only connection of the inlet, vent, overflow and

discharge pipework, and wiring between the customers supply isolator

and the control gear enclosure. With the selector turned to 'Auto'

the unit operates to match demand with no further attention.

Note: It is recommended that a valve should be fitted in the delivery

pipework adjacent to the unit. Should the system head be less than

the unit head, the valve may then be adjusted to increase the

system head, reducing possible cavitation and noise.

Vent connection

Control

panel

Lifting lug

Overflow

connection

Drain

Pump

discharge

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2007
