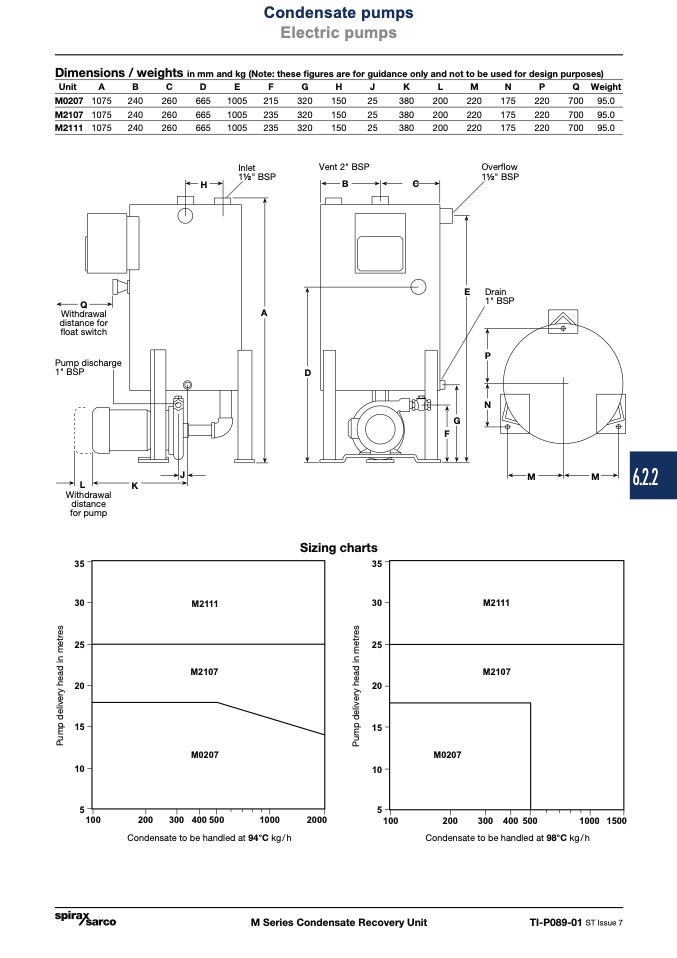

Condensate pumps

Electric pumps

Dimensions / weights in mm and kg (Note: these figures are for guidance only and not to be used for design purposes)

Unit

A

B

C

D

E

F

G

H

J

K

L

M

N

P

Q Weight

M0207 1075

240

260

665

1005

215

320

150

25

380

200

220

175

220

700 95.0

M2107 1075

240

260

665

1005

235

320

150

25

380

200

220

175

220

700 95.0

M2111 1075

240

260

665

1005

235

320

150

25

380

200

220

175

220

700 95.0

H

Inlet

Vent 2" BSP

11⁄2" BSP

B

C

Overflow

11⁄2" BSP

Drain

1" BSP

G

E

Q

Withdrawal

distance for

float switch

Pump discharge

1" BSP

L

K

Withdrawal

distance

for pump

��

��

��

��

��

��

A

P

D

N

F

M

M

6.2.2

Sizing charts

��

��

��

��

��

��

�����

�����

�����

�����

�����

�����

�

�

���

���

��� ������

����

����

���

Condensate to be handled at 94°C kg/h

���

��� ������

���� ����

Condensate to be handled at 98°C kg/h

M Series Condensate Recovery Unit

TI-P089-01 ST Issue 7
