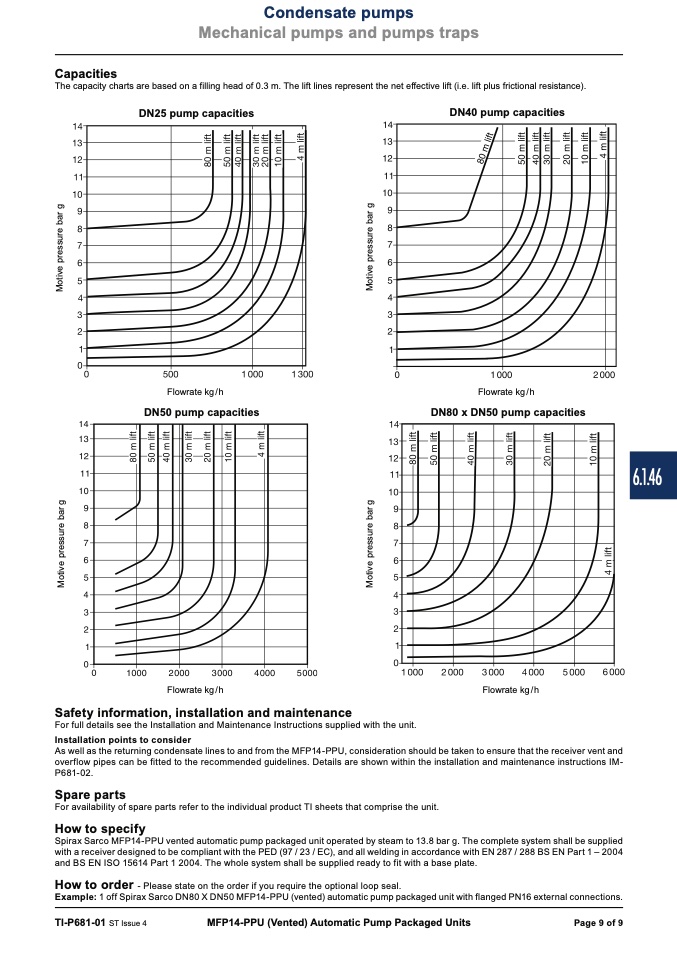

Condensate pumps

Mechanical pumps and pumps traps

Capacities

The capacity charts are based on a filling head of 0.3 m. The lift lines represent the net effective lift (i.e. lift plus frictional resistance).

DN25 pump capacities

DN40 pump capacities

Flowrate kg/h

DN50 pump capacities

Flowrate kg/h

DN80 x DN50 pump capacities

Flowrate kg/h

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions supplied with the unit.

Installation points to consider

Flowrate kg/h

As well as the returning condensate lines to and from the MFP14-PPU, consideration should be taken to ensure that the receiver vent and

overflow pipes can be fitted to the recommended guidelines. Details are shown within the installation and maintenance instructions IM-

P681-02.

Spare parts

For availability of spare parts refer to the individual product TI sheets that comprise the unit.

How to specify

Spirax Sarco MFP14-PPU vented automatic pump packaged unit operated by steam to 13.8 bar g. The complete system shall be supplied

with a receiver designed to be compliant with the PED (97 / 23 / EC), and all welding in accordance with EN 287 / 288 BS EN Part 1 – 2004

and BS EN ISO 15614 Part 1 2004. The whole system shall be supplied ready to fit with a base plate.

How to order

- Please state on the order if you require the optional loop seal.

Example: 1 off Spirax Sarco DN80 X DN50 MFP14-PPU (vented) automatic pump packaged unit with flanged PN16 external connections.

TI-P681-01 ST Issue 4

MFP14-PPU (Vented) Automatic Pump Packaged Units

Page 9 of 9
