B

Steam

saturation

curve

D

Steam

saturation

curve

Condensate pumps

Mechanical pumps and pumps traps

Steam

saturation

curve

D

6.1.7

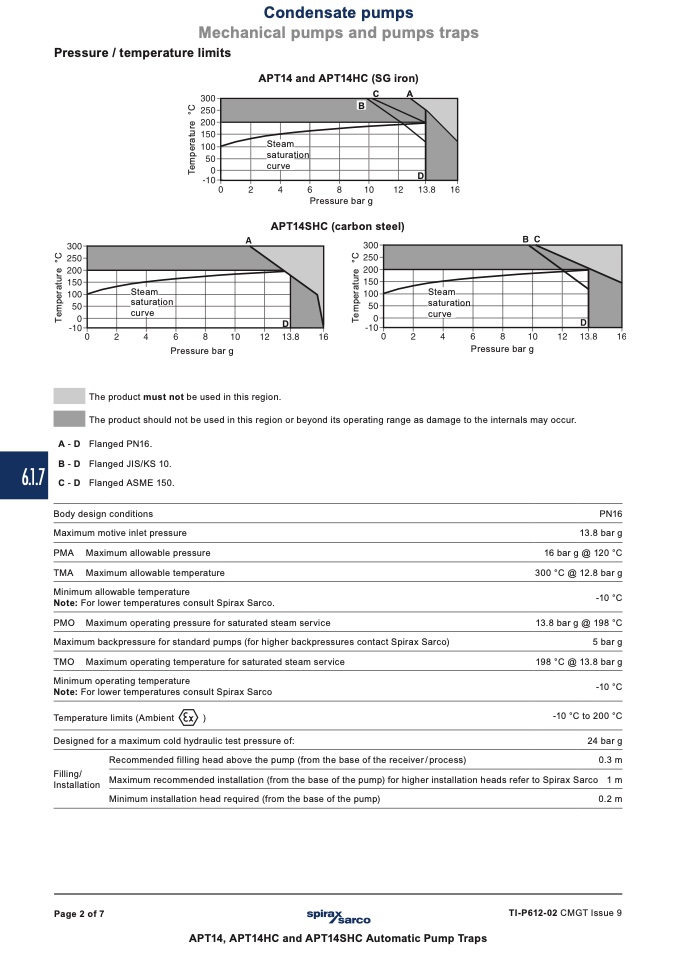

Pressure / temperature limits

APT14 and APT14HC (SG iron)

C

A

Pressure bar g

APT14SHC (carbon steel)

Pressure bar g

Pressure bar g

The product must not be used in this region.

The product should not be used in this region or beyond its operating range as damage to the internals may occur.

A-D Flanged PN16.

B-D Flanged JIS/KS 10.

C-D Flanged ASME 150.

Body design conditions

Maximum motive inlet pressure

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

Note: For lower temperatures consult Spirax Sarco.

PMO Maximum operating pressure for saturated steam service

Maximum backpressure for standard pumps (for higher backpressures contact Spirax Sarco)

TMO Maximum operating temperature for saturated steam service

Minimum operating temperature

Note: For lower temperatures consult Spirax Sarco

Temperature limits (Ambient

)

Designed for a maximum cold hydraulic test pressure of:

PN16

13.8 bar g

16 bar g @ 120 °C

300 °C @ 12.8 bar g

-10 °C

13.8 bar g @ 198 °C

5 bar g

198 °C @ 13.8 bar g

-10 °C

-10 °C to 200 °C

24 bar g

0.3 m

1 m

0.2 m

Filling/

Installation

Maximum recommended installation (from the base of the pump) for higher installation heads refer to Spirax Sarco

Minimum installation head required (from the base of the pump)

Recommended filling head above the pump (from the base of the receiver / process)

Page 2 of 7

TI-P612-02 CMGT Issue 9

APT14, APT14HC and APT14SHC Automatic Pump Traps

T

e

m

p

e

r

a

t

u

r

e

°

C

T

e

m

p

e

r

a

t

u

r

e

°

C

T

e

m

p

e

r

a

t

u

r

e

°

C
