Description

Condensate pumps

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Mechanical pumps and pumps traps

© Copyright 2017

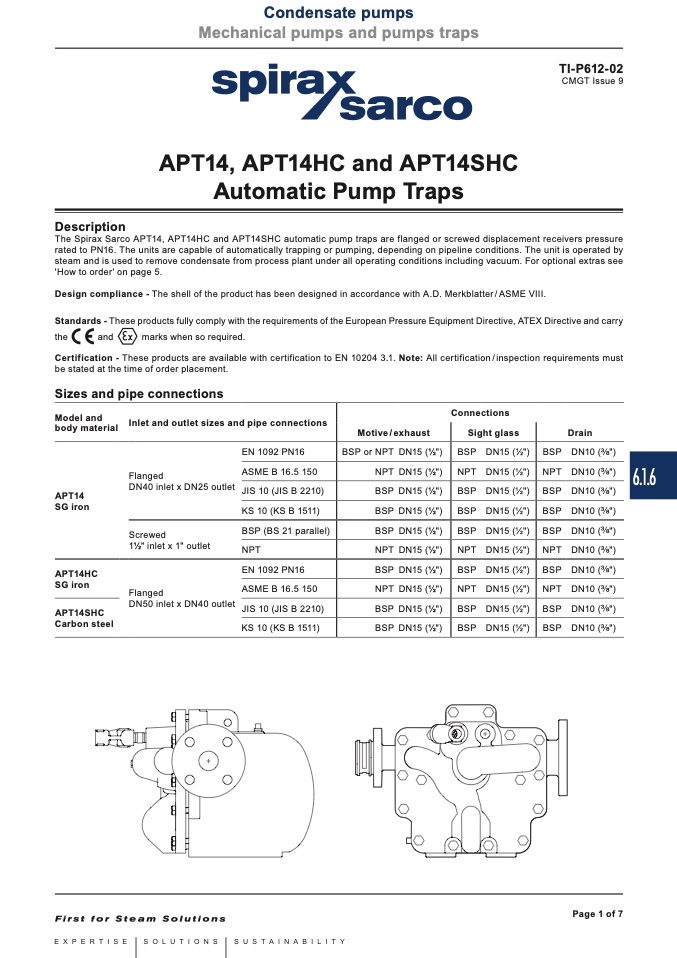

APT14, APT14HC and APT14SHC

Automatic Pump Traps

The Spirax Sarco APT14, APT14HC and APT14SHC automatic pump traps are flanged or screwed displacement receivers pressure

rated to PN16. The units are capable of automatically trapping or pumping, depending on pipeline conditions. The unit is operated by

steam and is used to remove condensate from process plant under all operating conditions including vacuum. For optional extras see

'How to order' on page 5.

Design compliance - The shell of the product has been designed in accordance with A.D. Merkblatter/ASME VIII.

Standards - These products fully comply with the requirements of the European Pressure Equipment Directive, ATEX Directive and carry

the

and

marks when so required.

Certification - These products are available with certification to EN 10204 3.1. Note: All certification/inspection requirements must

be stated at the time of order placement.

Sizes and pipe connections

Model and

body material

APT14

SG iron

APT14HC

SG iron

APT14SHC

Carbon steel

Inlet and outlet sizes and pipe connections

Motive / exhaust

Connections

Sight glass

BSP DN15 (1⁄2")

NPT DN15 (1⁄2")

BSP DN15 (1⁄2")

BSP DN15 (1⁄2")

BSP DN15 (1⁄2")

NPT DN15 (1⁄2")

BSP DN15 (1⁄2")

NPT DN15 (1⁄2")

BSP DN15 (1⁄2")

BSP DN15 (1⁄2")

Drain

BSP DN10 ( ")

NPT DN10 ( ")

BSP DN10 ( ")

BSP DN10 ( ")

BSP DN10 ( ")

NPT DN10 ( ")

BSP DN10 ( ")

NPT DN10 ( ")

BSP DN10 ( ")

BSP DN10 ( ")

Flanged

DN40 inlet x DN25 outlet

Screwed

11⁄2" inlet x 1" outlet

Flanged

DN50 inlet x DN40 outlet

6.1.6

EN 1092 PN16

ASME B 16.5 150

JIS 10 (JIS B 2210)

KS 10 (KS B 1511)

BSP (BS 21 parallel)

NPT

EN 1092 PN16

ASME B 16.5 150

JIS 10 (JIS B 2210)

KS 10 (KS B 1511)

BSP or NPT DN15 (1⁄2")

NPT DN15 (1⁄2")

BSP DN15 (1⁄2")

BSP DN15 (1⁄2")

BSP DN15 (1⁄2")

NPT DN15 (1⁄2")

BSP DN15 (1⁄2")

NPT DN15 (1⁄2")

BSP DN15 (1⁄2")

BSP DN15 (1⁄2")

TI-P612-02

CMGT Issue 9

Page 1 of 7
