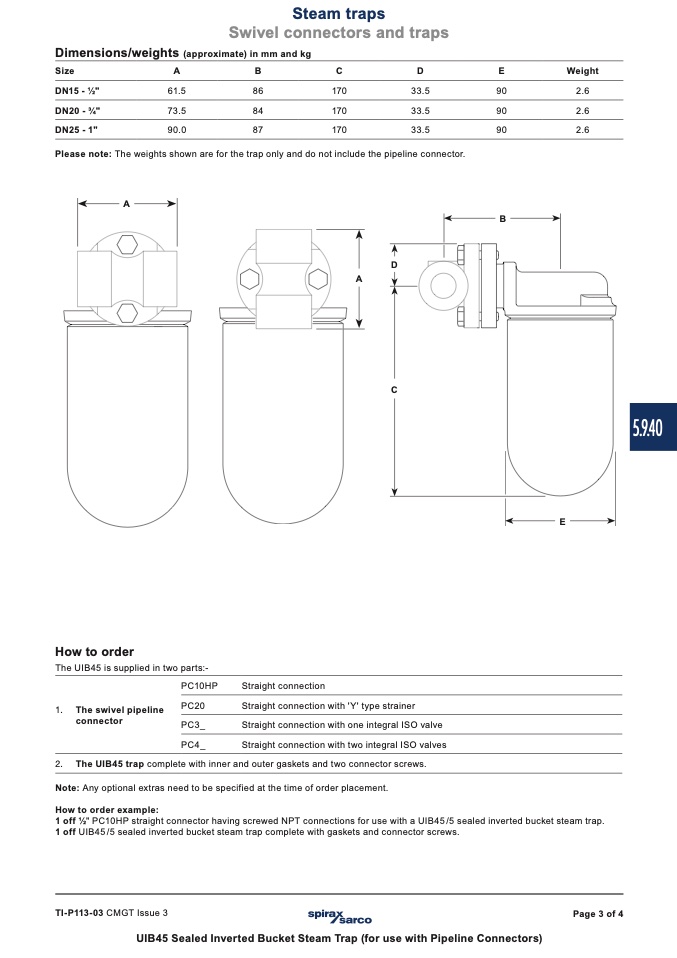

Dimensions/weights (approximate) in mm and kg

Steam traps

Swivel connectors and traps

Size

DN15 - 1⁄2"

DN20 - 3⁄4"

DN25 - 1"

A

B

C

D

E

Weight

61.5

86

73.5

84

90.0

87

170

33.5

90

170

33.5

90

170

33.5

90

2.6

2.6

2.6

Please note: The weights shown are for the trap only and do not include the pipeline connector.

A

B

D

A

C

5.9.40

E

How to order

The UIB45 is supplied in two parts:-

PC10HP

Straight connection

1. The swivel pipeline

connector

PC20

Straight connection with 'Y' type strainer

PC3_

Straight connection with one integral ISO valve

PC4_

Straight connection with two integral ISO valves

2. The UIB45 trap complete with inner and outer gaskets and two connector screws.

Note: Any optional extras need to be specified at the time of order placement.

How to order example:

1 off 1⁄2" PC10HP straight connector having screwed NPT connections for use with a UIB45/5 sealed inverted bucket steam trap.

1 off UIB45/5 sealed inverted bucket steam trap complete with gaskets and connector screws.

TI-P113-03 CMGT Issue 3

Page 3 of 4

UIB45 Sealed Inverted Bucket Steam Trap (for use with Pipeline Connectors)
