Steam traps

Swivel connectors and traps

5.9.41

or

mm

"

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions (IM-P113-04) supplied with the product.

Installation note:

The pipeline connector can be installed in either horizontal or vertical pipework.

DIsposal:

The UIB45 trap unit is manufactured from stainless steel and is therefore totally recyclable. No ecological hazard is anticipated with

the disposal of this product provided due care is taken.

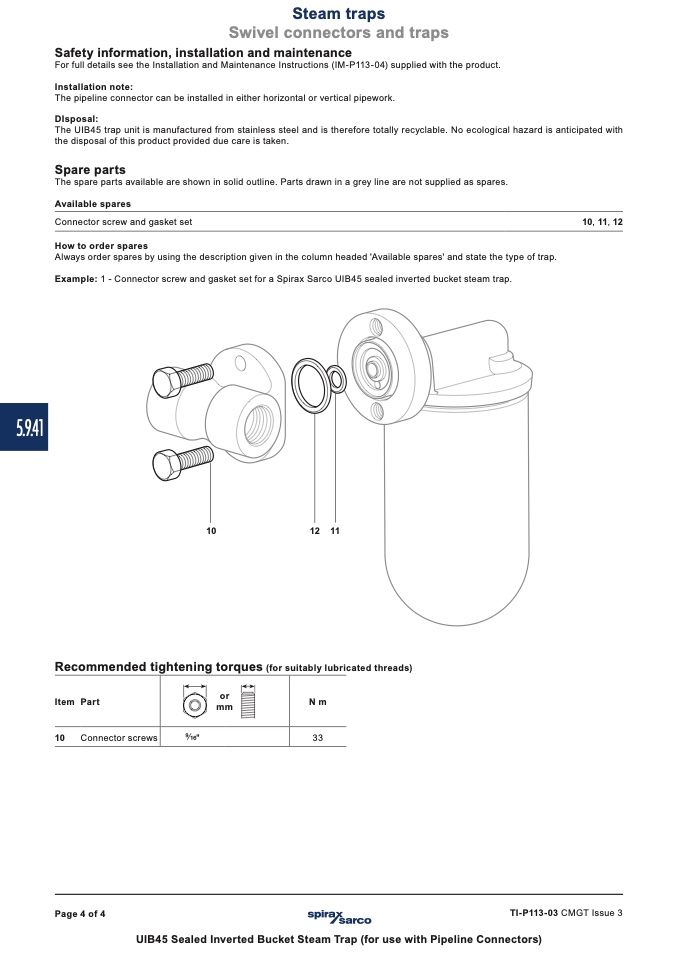

Spare parts

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spares

Connector screw and gasket set

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the type of trap.

Example: 1 - Connector screw and gasket set for a Spirax Sarco UIB45 sealed inverted bucket steam trap.

10, 11, 12

10

12 11

Recommended tightening torques (for suitably lubricated threads)

Item Part

Nm

10 Connector screws

33

Page 4 of 4

TI-P113-03 CMGT Issue 3

UIB45 Sealed Inverted Bucket Steam Trap (for use with Pipeline Connectors)
