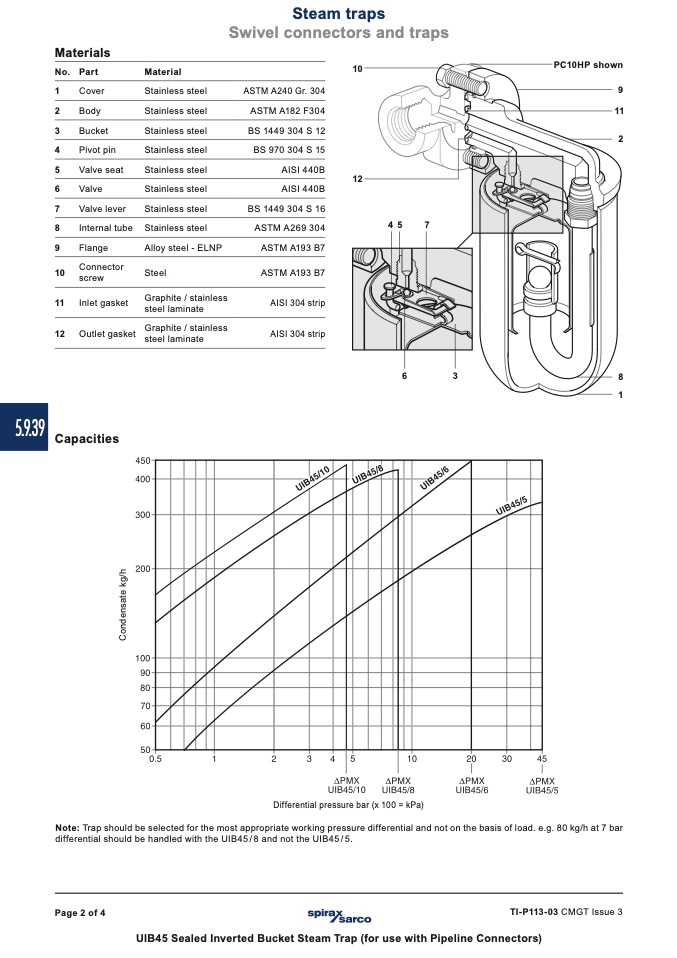

Materials

No. Part

1

Cover

2

Body

3

Bucket

4

Pivot pin

5

Valve seat

6

Valve

7

Valve lever

8

Internal tube

9

Flange

10

Connector

screw

11 Inlet gasket

12 Outlet gasket

5.9.39

Capacities

Material

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Alloy steel - ELNP

Steel

Graphite / stainless

steel laminate

Graphite / stainless

steel laminate

Steam traps

Swivel connectors and traps

10

12

PC10HP shown

9

11

2

ASTM A240 Gr. 304

ASTM A182 F304

BS 1449 304 S 12

BS 970 304 S 15

AISI 440B

AISI 440B

BS 1449 304 S 16

ASTM A269 304

ASTM A193 B7

ASTM A193 B7

AISI 304 strip

AISI 304 strip

4

5

7

C

o

n

d

e

n

s

a

t

e

k

g

/

h

Differential pressure bar (x 100 = kPa)

Note: Trap should be selected for the most appropriate working pressure differential and not on the basis of load. e.g. 80 kg/h at 7 bar

differential should be handled with the UIB45 / 8 and not the UIB45 / 5.

Page 2 of 4

TI-P113-03 CMGT Issue 3

UIB45 Sealed Inverted Bucket Steam Trap (for use with Pipeline Connectors)
