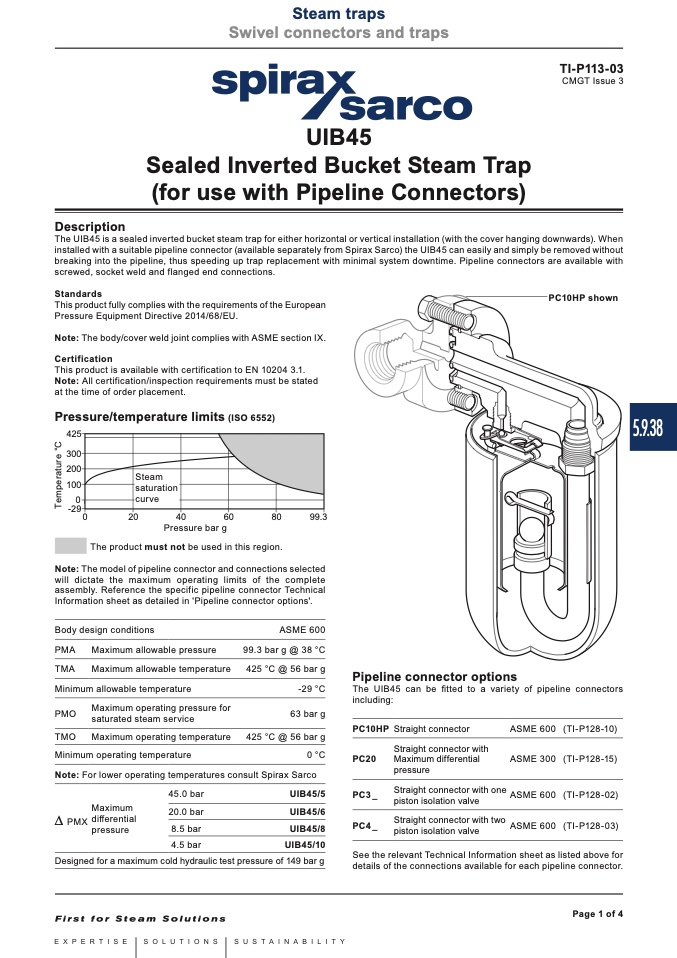

Sealed Inverted Bucket Steam Trap

(for use with Pipeline Connectors)

Description

The UIB45 is a sealed inverted bucket steam trap for either horizontal or vertical installation (with the cover hanging downwards). When

installed with a suitable pipeline connector (available separately from Spirax Sarco) the UIB45 can easily and simply be removed without

breaking into the pipeline, thus speeding up trap replacement with minimal system downtime. Pipeline connectors are available with

screwed, socket weld and flanged end connections.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 2014/68/EU.

Note: The body/cover weld joint complies with ASME section IX.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Pressure/temperature limits (ISO 6552)

425

300

200

100

Note: The model of pipeline connector and connections selected

will dictate the maximum operating limits of the complete

assembly. Reference the specific pipeline connector Technical

Information sheet as detailed in 'Pipeline connector options'.

PC10HP shown

Steam

saturation

curve

0

-29

0

20 80

99.3

The product must not be used in this region.

40

60

Pressure bar g

Body design conditions

PMA

Maximum allowable pressure

TMA

Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure for

saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

ASME 600

99.3 bar g @ 38 °C

425 °C @ 56 bar g

-29 °C

63 bar g

425 °C @ 56 bar g

0 °C

Pipeline connector options

The UIB45 can be fitted to a variety of pipeline connectors

including:

PC10HP Straight connector

Straight connector with

PC20

Maximum differential

pressure

ASME 600 (TI-P128-10)

ASME 300

(TI-P128-15)

(TI-P128-02)

(TI-P128-03)

Note: For lower operating temperatures consult Spirax Sarco

Maximum

D

PMX differential

pressure

45.0 bar

20.0 bar

8.5 bar

4.5 bar

UIB45/5

UIB45/6

UIB45/8

UIB45/10

PC3 _

Straight connector with one

ASME 600

piston isolation valve

PC4 _

Straight connector with two

ASME 600

piston isolation valve

Designed for a maximum cold hydraulic test pressure of 149 bar g

See the relevant Technical Information sheet as listed above for

details of the connections available for each pipeline connector.
