Kv values
Size
Kv
For conversion:
DN15
1.1
Cv (UK) = Kv x 0.963
Spare parts
The spare parts available are detailed below. No other parts are
supplied as spares.
Dimensions / weights (approximate) in mm and kg
Size
A
B
C
D
Weight
1⁄2"
81
24
127
58
1.20
3⁄4"
89
24
127
64
1.30
1"
99
25
132
69
1.50
2, 4
8, 9
C
A
D
B
9
5.9.12
Item
or
Nm
Safety information, installation and maintenance
For full details see the Installation and Maintenance Instructions
(IM-P128-11) supplied with the product.
There are two criteria which must be satisfied to ensure that the
swivel connector trap will operate correctly and ensure effective
condensate removal:
-
The IPC20 and IPC21 must be installed in a horizontal pipeline
with the sensor at the bottom.
-
The connection face for the swivel connector steam trap must
always be in the vertical plane unless stated on relevant steam
trap Installation and Maintenance Instructions.
After installation it is recommended that the pipeline connector is
insulated to minimise radiated heat losses and to protect personnel
from burn risk.
Detailed instructions regarding welding socket weld versions are
provided with the product.
Disposal
This product is recyclable. No ecological hazard is anticipated with
disposal of this product providing due care is taken.
How to order
Example: 1 off 1⁄2" Spirax Sarco IPC21 pipeline connector with
socket weld connections fitted with an integral strainer screen and
SS1 Spiratec sensor for steam wastage detection.
Recommended tightening torques
mm
General information
Steam traps
Swivel connectors and traps
DN20
DN25
1.1
1.1
Cv (US) = Kv x 1.156
Available spares
Strainer screen and gasket
Sensor and sensor gasket
Always order spares using the description given in the column
headed 'Available spares' and state the size and model number.
Example: 1 - Strainer screen and gasket for the 1⁄2" IPC20 connector.
2
4
3
8

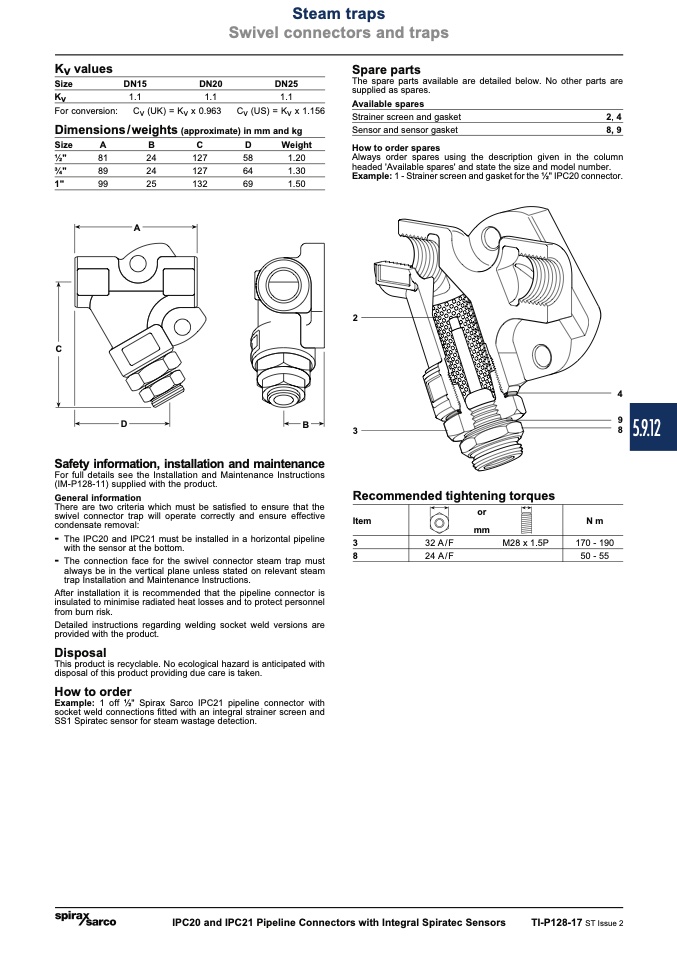

IPC20 and IPC21 Pipeline Connectors with Integral Spiratec Sensors
TI-P128-17 ST Issue 2
How to order spares
3
32 A/F
8
24 A/F
M28 x 1.5P
170 - 190
50 - 55
