5.9.11

Steam trap type to be specified

e.g. Spirax Sarco UBP, UTD, UIB, UFT, etc.

Cert. No. LRQ 0963008

ISO 9001

Description

The IPC20 is a pipeline connector with integral strainer and Spiratec

316L

AISI 303

BS 1449 304 S16

ASTM A582 416

Body design conditions

PMA - Maximum allowable pressure

TMA - Maximum allowable temperature

PMO - Maximum operating pressure

TMO - Maximum operating temperature

Designed for a maximum cold hydraulic test pressure of 76 bar g

Operating range

sensor for use with UTD52L, UTD52H, UTD30L, UTD30H, UBP21

and UBP32 steam traps.

The IPC21 is a pipeline connector with an integral strainer and

Spiratec sensor for use with UIB30, UIB30H, UFT14 and UFT32

steam traps.

SS1 sensor - for detection of steam leakage.

WLS1 sensor with diode - for use with R16C monitor to detect

WLS1 sensor without diode - for use with R1C to detect steam

wastage and waterlogging.

These products fully comply with the requirements of the European

Pressure Directive 97/23/EC.

These products are available with certification to EN 10204 2.2.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

Condensate inlet/outlet DN15, 20 and 25

Screwed BSP, NPT

Socket weld ends to ANSI B 16.11/BS 3799 Class 3000.

Limiting conditions

ANSI/ASME Class 300 (PN50)

50 bar g

240°C

32 bar g

240°C

Both the IPC20 and IPC21 can be fitted with the following sensor

options:

steam wastage and waterlogging.

Standards

��

* PMO

Steam

saturation

curve

��

Pressure bar g

The product must not be used in this region.

Maximum operating pressure recommended for saturated

steam service.

Certification

Steam traps

Swivel connectors and traps

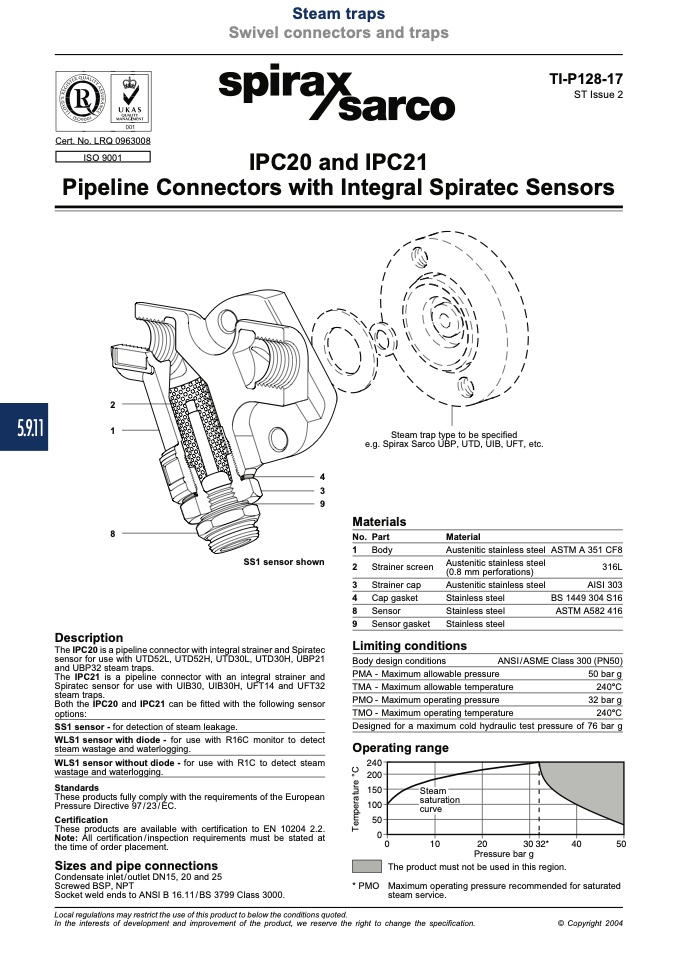

IPC20 and IPC21

Pipeline Connectors with Integral Spiratec Sensors

SS1 sensor shown

Materials

No. Part

1 Body

2 Strainer screen

3 Strainer cap

4 Cap gasket

8 Sensor

9 Sensor gasket

Material

Austenitic stainless steel ASTM A 351 CF8

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

Austenitic stainless steel

(0.8 mm perforations)
