Dimensions/weights (approximate) in mm and kg
Size
A
B
C
D
E
F
Weight
DN15
87
150
92
72
40
30
8.5
DN20
87
150
92
72
40
30
8.5
DN25
87
160
92
72
40
30
9.1
Spare parts
The spare parts available are shown in solid outline. Parts shown
in broken line are not supplied as spares.
F Withdrawal distance
A
D
E Withdrawal distance
Capacities
���
���
���
���
���
��
��
��
��
����
�
�
�
C
Available spares
Insulating cover
Set of cover studs and nuts (set of 8)
Seat and disc assembly
Strainer screen 100 mesh
Set of gaskets (packet of 3 sets)
Cover gasket (3 off)
How to order spares
5
8, 8A, 9
6, 7, 10, 13, 14, 15
4
10, 13, 14
10
B
5
9
6
10
5.7.44
7 + 15
14
13
8
Minimum operating pressure 8 bar for the TD62LM
Differential pressure bar (x 100 = kPa)
Safety information, installation and maintenance
For full details see the Installation and Maintenance Instructions
(IM-P068-58) supplied with the product.
Installation note:
Preferably install in horizontal pipelines with the insulating cover
uppermost although it can be fitted in other positions.
After 24 hours in service the cover nuts should be checked for
tightness.
Disposal
The product is recyclable no ecological hazard is anitcipated with
the disposal of this product, providing due care is taken.
How to order
Example: 1 off Spirax Sarco DN20 TD62LM thermodynamic steam
trap with EN steel body having an integral strainer replaceable
seat and flanged PN100 connections suitable for steam main
drainage. An aluminium insulating cover shall be fitted as standard.
Recommended tightening torques
or
��
�
�
��������
8A
4
10
9
Steam traps
Thermodynamic
�����
������
C
o
n
d
e
n
s
a
t
e
k
g
/
h

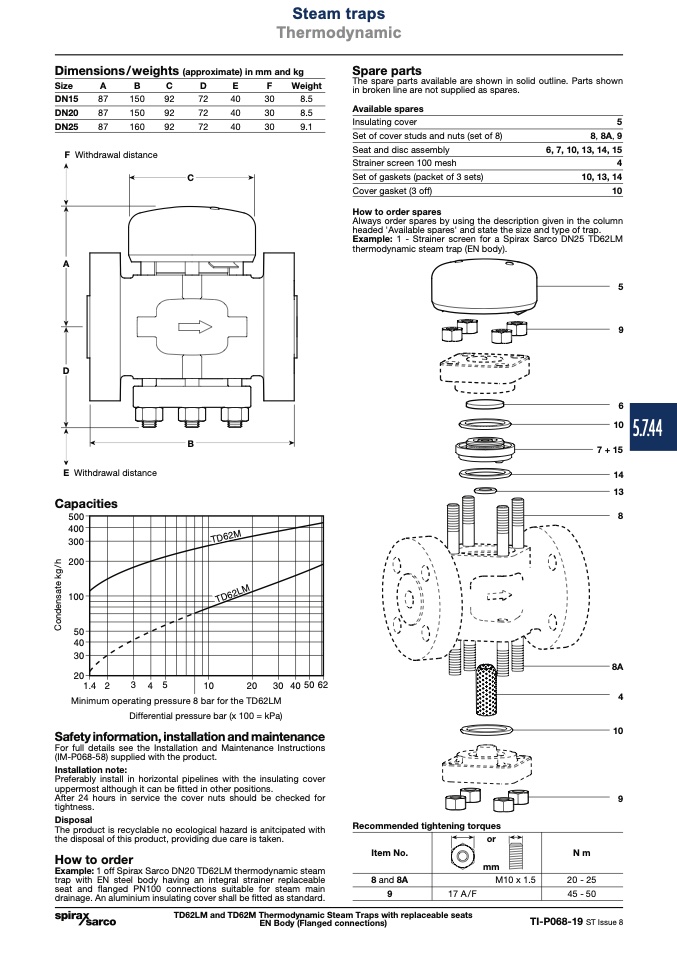

TD62LM and TD62M Thermodynamic Steam Traps with replaceable seats
EN Body (Flanged connections)
TI-P068-19 ST Issue 8
Always order spares by using the description given in the column
headed 'Available spares' and state the size and type of trap.
Example: 1 - Strainer screen for a Spirax Sarco DN25 TD62LM
thermodynamic steam trap (EN body).
Item No.
8 and 8A
9
mm
M10 x 1.5
N m
20 - 25
45 - 50
17 A/F
