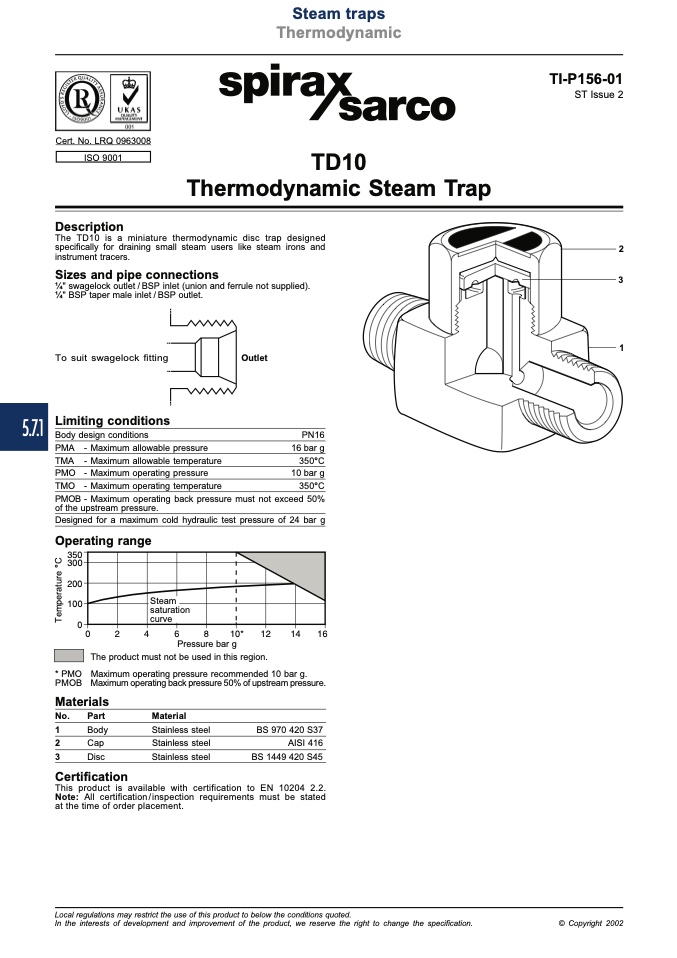

Steam traps

Thermodynamic

ISO 9001

5.7.1

Steam

saturation

curve

TI-P156-01

ST Issue 2

Cert. No. LRQ 0963008

Description

TD10

Thermodynamic Steam Trap

The TD10 is a miniature thermodynamic disc trap designed

specifically for draining small steam users like steam irons and

instrument tracers.

Sizes and pipe connections

1⁄4" swagelock outlet / BSP inlet (union and ferrule not supplied).

1⁄4" BSP taper male inlet / BSP outlet.

2

3

1

To suit swagelock fitting

Limiting conditions

Body design conditions

PMA - Maximum allowable

TMA - Maximum allowable

PMO - Maximum operating

TMO - Maximum operating

PMOB - Maximum operating

of the upstream pressure.

Outlet

PN16

16 bar g

350°C

10 bar g

350°C

back pressure must not exceed 50%

pressure

temperature

pressure

temperature

Designed for a maximum cold hydraulic test pressure of 24 bar g

Operating range

������

������

������

������

��

* PMO

PMOB

��

��

��

��

��

������

����

����

����

Pressure bar g

The product must not be used in this region.

Maximum operating pressure recommended 10 bar g.

Maximum operating back pressure 50% of upstream pressure.

Materials

No.

Part

1

Body

2

Cap

3

Disc

Certification

Material

Stainless steel

Stainless steel

Stainless steel

BS 970 420 S37

AISI 416

BS 1449 420 S45

This product is available with certification to EN 10204 2.2.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2002

T

e

m

p

e

r

a

t

u

r

e

°

C
