Steam traps
Inverted bucket
Safety information, installation and maintenance
For full details see the Installation and Maintenance Instructions
supplied with the product.
Installation note:
The trap must be installed below the drain point with the body
upright in a vertical position, the cover at the top and the inlet
connection at the bottom; this orientation will ensure that the
bucket mechanism will rise and fall vertically without any friction.
It is recommended that a strainer is installed upstream of the IBV
to protect it from contamination.
To permit safe inspection for cleaning or maintenance purpose it
is again recommended that suitable shut-off valves are installed
upstream and downstream of the IBV application.
It needs to be appreciated that there is blast discharge with this
device, consequently the downstream accessories, if any, should
be installed at a minimum distance of 1 m from the IBV.
Disposal
This product is recyclable. No ecological hazard is anticipated
with the disposal of this product providing due care is taken.

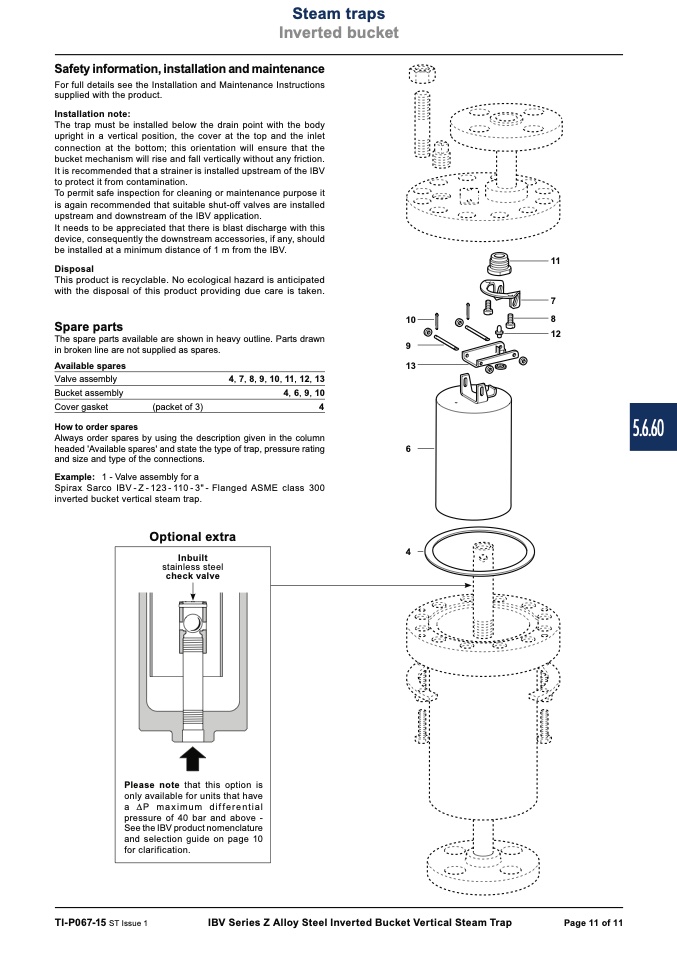

Spare parts
The spare parts available are shown in heavy outline. Parts drawn
in broken line are not supplied as spares.
11
7
10
8
9
13
12
Available spares
Valve assembly
Bucket assembly
Cover gasket
How to order spares
(packet of 3)
4, 7, 8, 9, 10, 11, 12, 13
4, 6, 9, 10
4
Always order spares by using the description given in the column
headed 'Available spares' and state the type of trap, pressure rating
6
and size and type of the connections.
Example: 1 - Valve assembly for a
Spirax Sarco IBV - Z - 123 - 110 - 3" - Flanged ASME class 300
inverted bucket vertical steam trap.
Optional extra
4
Inbuilt
stainless steel
check valve
Please note that this option is
only available for units that have
a DP maximum differential
pressure of 40 bar and above -
See the IBV product nomenclature
and selection guide on page 10
for clarification.
TI-P067-15 ST Issue 1
IBV Series Z Alloy Steel Inverted Bucket Vertical Steam Trap
Page 11 of 11
5.6.60
