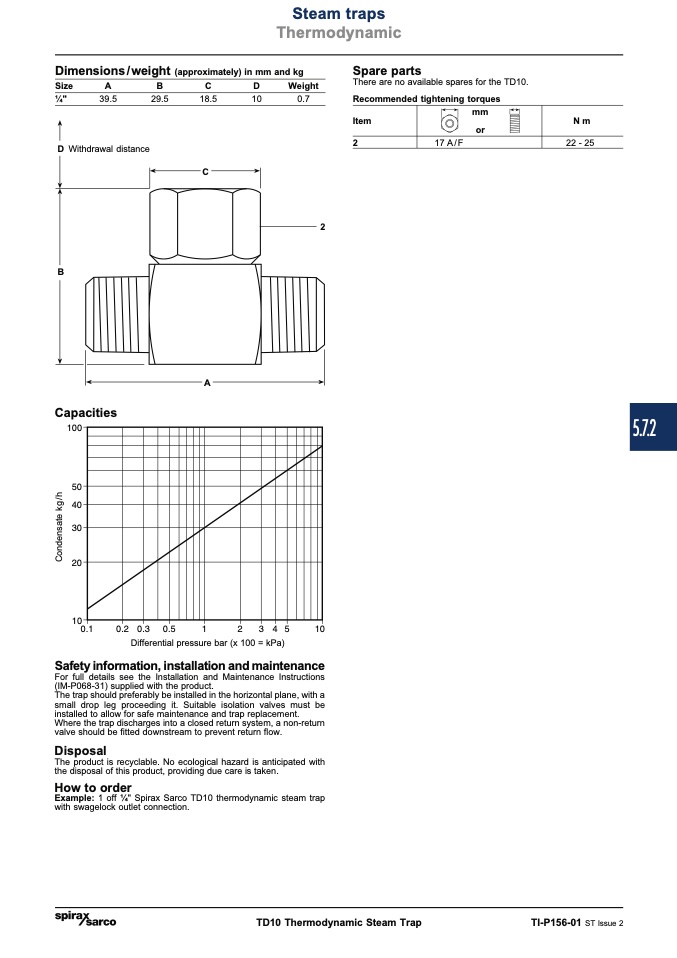

Steam traps

Thermodynamic

Dimensions/weight (approximately) in mm and kg

Size

A

B

C

D

Weight

1⁄4"

39.5

29.5

18.5

10

0.7

Withdrawal distance

Spare parts

There are no available spares for the TD10.

Recommended tightening torques

Item

mm

Nm

2

17 A/F

or

22 - 25

D

C

2

B

A

Capacities

������

����

����

����

����

����

������

������ ������ ������

��

��

�� �� ��

����

Differential pressure bar (x 100 = kPa)

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P068-31) supplied with the product.

The trap should preferably be installed in the horizontal plane, with a

small drop leg proceeding it. Suitable isolation valves must be

installed to allow for safe maintenance and trap replacement.

Where the trap discharges into a closed return system, a non-return

valve should be fitted downstream to prevent return flow.

Disposal

The product is recyclable. No ecological hazard is anticipated with

the disposal of this product, providing due care is taken.

How to order

Example: 1 off 1⁄4" Spirax Sarco TD10 thermodynamic steam trap

with swagelock outlet connection.

TD10 Thermodynamic Steam Trap

TI-P156-01 ST Issue 2

5.7.2

C

o

n

d

e

n

s

a

t

e

k

g

/

h
