52 mm
112 mm
120 mm
120 mm
140 mm

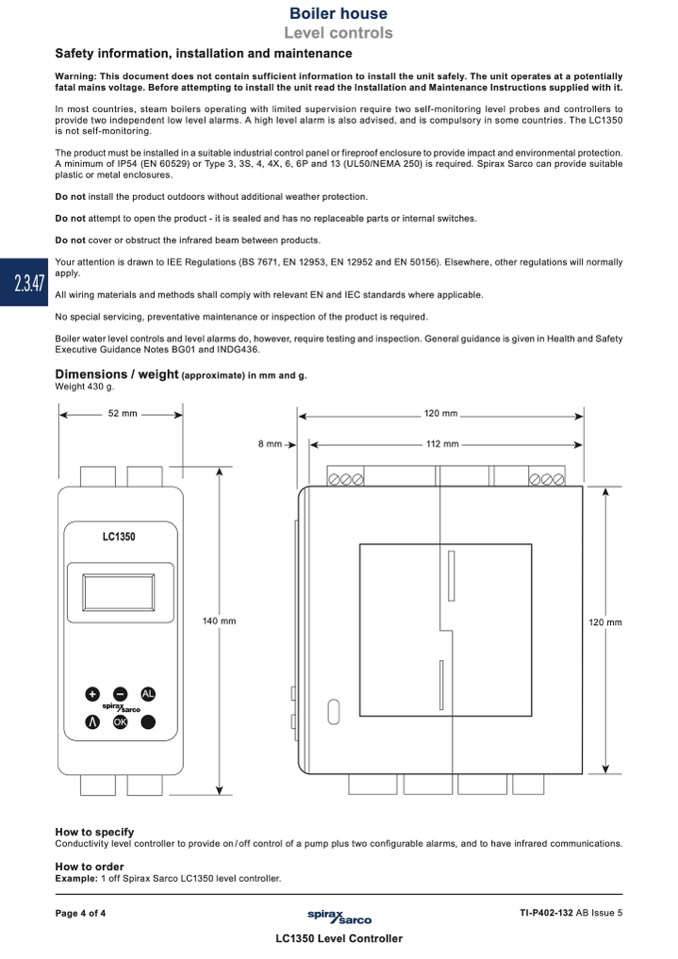

Warning: This document does not contain sufficient information to install the unit safely. The unit operates at a potentially
fatal mains voltage. Before attempting to install the unit read the Installation and Maintenance Instructions supplied with it.
In most countries, steam boilers operating with limited supervision require two self-monitoring level probes and controllers to
provide two independent low level alarms. A high level alarm is also advised, and is compulsory in some countries. The LC1350
is not self-monitoring.
The product must be installed in a suitable industrial control panel or fireproof enclosure to provide impact and environmental protection.
A minimum of IP54 (EN 60529) or Type 3, 3S, 4, 4X, 6, 6P and 13 (UL50/NEMA 250) is required. Spirax Sarco can provide suitable
plastic or metal enclosures.
Do not install the product outdoors without additional weather protection.
Do not attempt to open the product - it is sealed and has no replaceable parts or internal switches.
Do not cover or obstruct the infrared beam between products.
Your attention is drawn to IEE Regulations (BS 7671, EN 12953, EN 12952 and EN 50156). Elsewhere, other regulations will normally
apply.
All wiring materials and methods shall comply with relevant EN and IEC standards where applicable.
No special servicing, preventative maintenance or inspection of the product is required.
Boiler water level controls and level alarms do, however, require testing and inspection. General guidance is given in Health and Safety
Executive Guidance Notes BG01 and INDG436.
Weight 430 g.
8 mm
AL
OK
Conductivity level controller to provide on/off control of a pump plus two configurable alarms, and to have infrared communications.
Example: 1 off Spirax Sarco LC1350 level controller.
Page 4 of 4
TI-P402-132 AB Issue 5
