Boiler house
Local regulations may restrict the use of this product to below the conditions quoted.
Level controls
In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017
TI-P402-133
EMM Issue 5

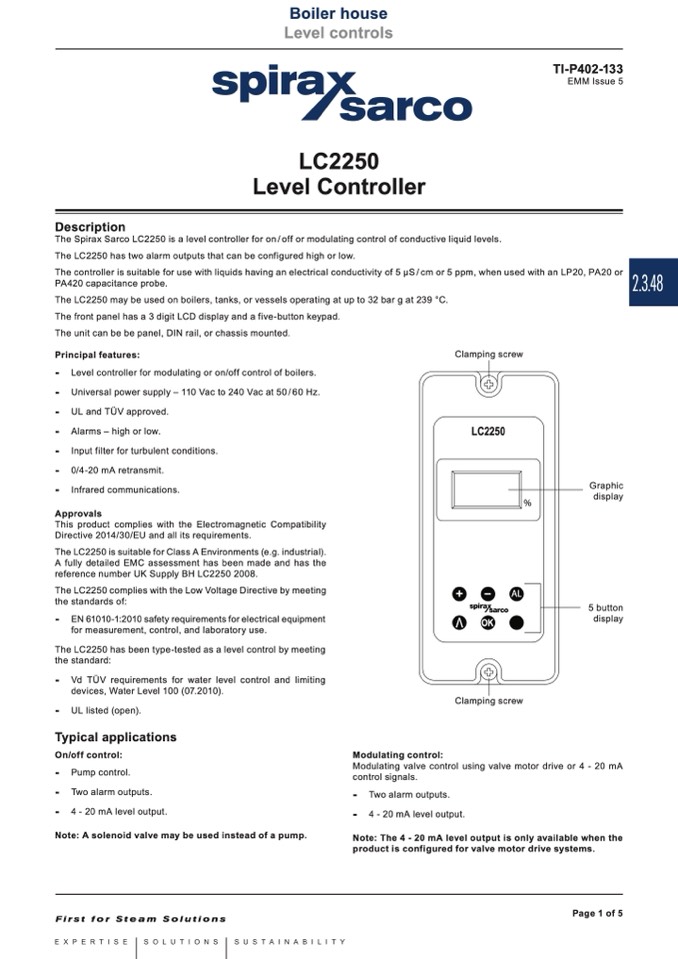

LC2250
Level Controller
Description
The Spirax Sarco LC2250 is a level controller for on/off or modulating control of conductive liquid levels.
The LC2250 has two alarm outputs that can be configured high or low.
The controller is suitable for use with liquids having an electrical conductivity of 5 μS/cm or 5 ppm, when used with an LP20, PA20 or
PA420 capacitance probe.
The LC2250 may be used on boilers, tanks, or vessels operating at up to 32 bar g at 239 °C.
The front panel has a 3 digit LCD display and a five-button keypad.
The unit can be be panel, DIN rail, or chassis mounted.
Principal features:
Clamping screw
-
Level controller for modulating or on/off control of boilers.
-
Universal power supply – 110 Vac to 240 Vac at 50 / 60 Hz.
-
UL and TÜV approved.
-
Alarms – high or low.
LC2250
-
Input filter for turbulent conditions.
-
0/4-20 mA retransmit.
-
Infrared communications.
Graphic
display
5 button
display
Approvals
This product complies with the Electromagnetic Compatibility
Directive 2014/30/EU and all its requirements.
The LC2250 is suitable for Class A Environments (e.g. industrial).
A fully detailed EMC assessment has been made and has the
reference number UK Supply BH LC2250 2008.
The LC2250 complies with the Low Voltage Directive by meeting
the standards of:
-
EN 61010-1:2010 safety requirements for electrical equipment
OK
for measurement, control, and laboratory use.
%
AL
Clamping screw
The LC2250 has been type-tested as a level control by meeting
the standard:
-
Vd TÜV requirements for water level control and limiting
devices, Water Level 100 (07.2010).
-
UL listed (open).
Typical applications
On/off control:
-
Pump control.
-
Two alarm outputs.
-
4 - 20 mA level output.
Note: A solenoid valve may be used instead of a pump.
Modulating control:
Modulating valve control using valve motor drive or 4 - 20 mA
control signals.
-
Two alarm outputs.
-
4 - 20 mA level output.
Note: The 4 - 20 mA level output is only available when the
product is configured for valve motor drive systems.
Page 1 of 5
2.3.48
