Boiler house

Level controls

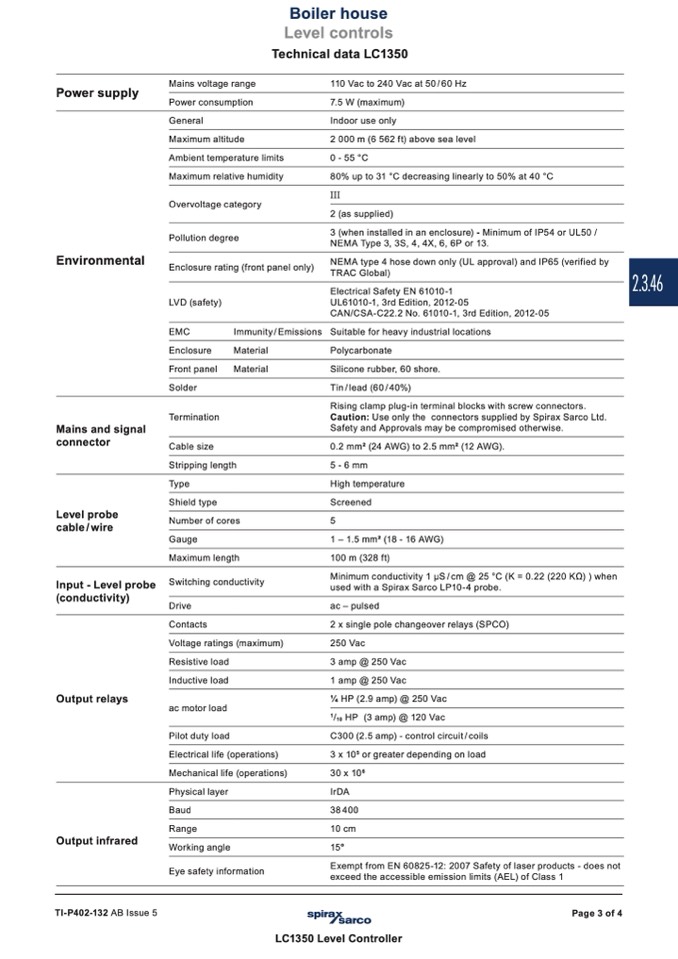

Technical data LC1350

Power supply

Mains voltage range

Power consumption

General

Maximum altitude

Ambient temperature limits

Maximum relative humidity

Overvoltage category

Pollution degree

Enclosure rating (front panel only)

110 Vac to 240 Vac at 50 / 60 Hz

7.5 W (maximum)

Indoor use only

2 000 m (6 562 ft) above sea level

0 - 55 °C

80% up to 31 °C decreasing linearly to 50% at 40 °C

2 (as supplied)

3 (when installed in an enclosure) - Minimum of IP54 or UL50 /

NEMA Type 3, 3S, 4, 4X, 6, 6P or 13.

NEMA type 4 hose down only (UL approval) and IP65 (verified by

TRAC Global)

Electrical Safety EN 61010-1

UL61010-1, 3rd Edition, 2012-05

CAN/CSA-C22.2 No. 61010-1, 3rd Edition, 2012-05

Suitable for heavy industrial locations

Polycarbonate

Silicone rubber, 60 shore.

Tin / lead (60 / 40%)

Rising clamp plug-in terminal blocks with screw connectors.

Caution: Use only the connectors supplied by Spirax Sarco Ltd.

Safety and Approvals may be compromised otherwise.

0.2 mm2 (24 AWG) to 2.5 mm2 (12 AWG).

5 - 6 mm

High temperature

Screened

5

1 – 1.5 mm2 (18 - 16 AWG)

100 m (328 ft)

Minimum conductivity 1 μS / cm @ 25 °C (K = 0.22 (220 KΩ) ) when

used with a Spirax Sarco LP10-4 probe.

ac – pulsed

2 x single pole changeover relays (SPCO)

250 Vac

3 amp @ 250 Vac

1 amp @ 250 Vac

1⁄4 HP (2.9 amp) @ 250 Vac

1

/

10

HP (3 amp) @ 120 Vac

C300 (2.5 amp) - control circuit / coils

3 x 10

5

or greater depending on load

30 x 10

6

IrDA

38 400

10 cm

15°

Exempt from EN 60825-12: 2007 Safety of laser products - does not

exceed the accessible emission limits (AEL) of Class 1

Environmental

Mains and signal

connector

Level probe

cable / wire

Input - Level probe

(conductivity)

Output relays

Output infrared

Stripping length

Type

Shield type

Number of cores

Gauge

Maximum length

Switching conductivity

Drive

Contacts

Voltage ratings (maximum)

Resistive load

Inductive load

ac motor load

Pilot duty load

Electrical life (operations)

Mechanical life (operations)

Physical layer

Baud

Range

Working angle

Eye safety information

LVD (safety)

EMC

Enclosure

Front panel

Solder

Termination

Cable size

Immunity / Emissions

Material

Material

TI-P402-132 AB Issue 5

Page 3 of 4

LC1350 Level Controller

2.3.46
